The Type N connector was developed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance through 11 GHz.
There are two families of Type N connectors: Standard N (coaxial cable) and Corrugated N (helical and annular cable).
N FEMALE CLAMP 600 ◆Cable assembly

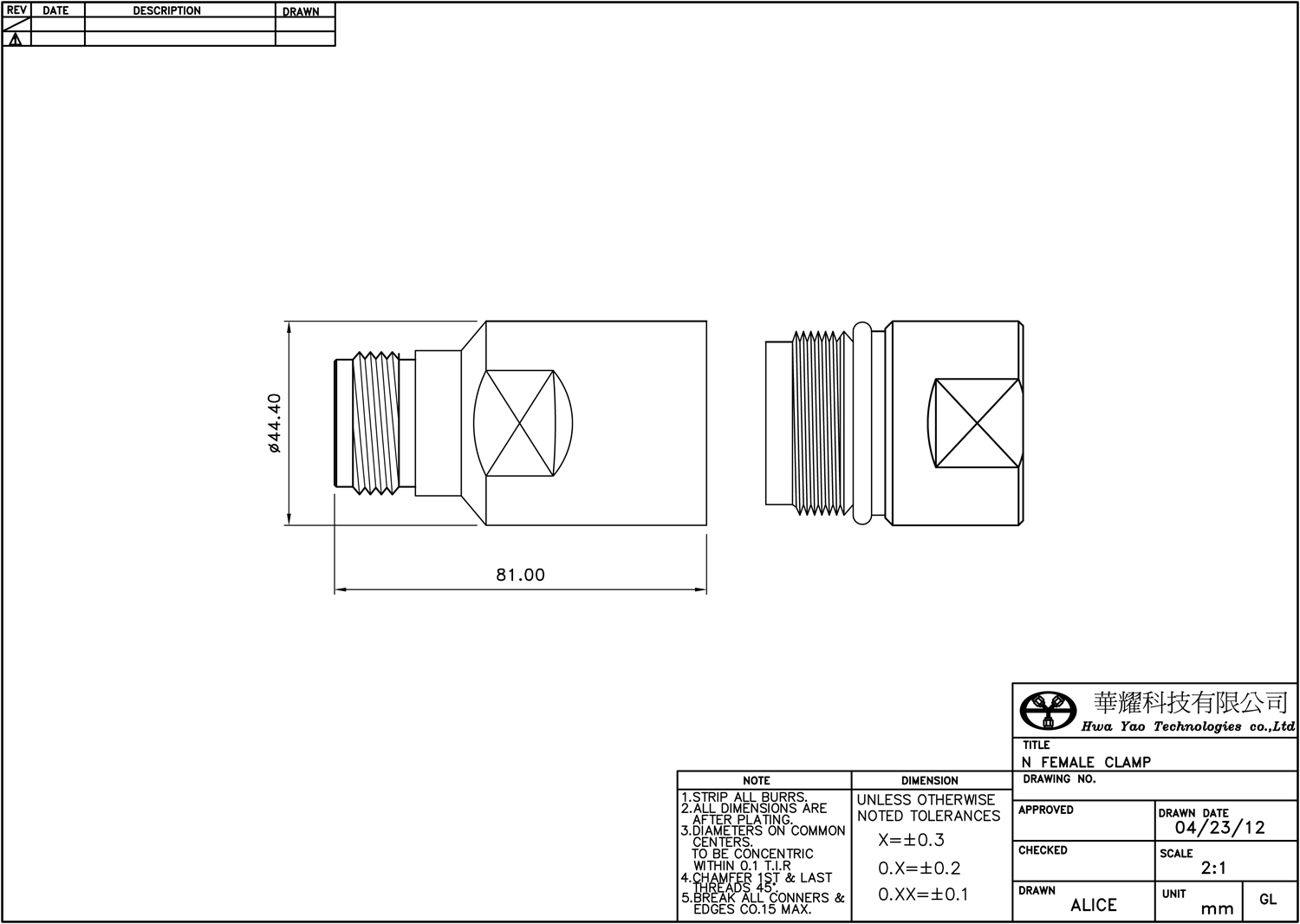

Interface Dimensions
Application Standard
Application Standard IEC 60169-16
Type N
Electrical characteristics
Characteristic impedance 50 ohm
Frequency range 0~6GHz
Standing-wave ratio 1.2
Insulation resistance ≥5000Mohm
Center contact resistance ≤1.0mohm
Outer contact resistance ≤0.25mohm
Withstand voltage 2500V rms
Working voltage 1400V
RF-leakage(dB) ≥128dB@1GHz
Mechanical characteristics
Coupling torque 0.8Nm~1.1Nm
Joint strength ≥450N
Center contact fixity 28N
Center contact retention force ≥0.56N
Hardiness ≥500
Environmental influences
Temperature range -55°C~+155°C
Steady state damp-heat IEC 61169-1,Subclause9.4.3
Temperature ictus IEC 61169-1,Subclause9.4.4
Vibration IEC 61169-1,Subclause9.3.3
Shock IEC 61169-1,Subclause9.3.14
Salt Fog IEC 61169-1,Subclause9.4.6
Materials
Body CuZN
Outer contact CuZN
Center contact CuZn, CuSn
Insulator PTFE
Body plating Ni/CuZnSn
Outer contact plating Ni/CuZnSn
Center contact plating Au/Ag
Connecting nut plating CuZnSn/Ni
