7/16 DIN connector comes from the size of the inner and outer contacts in metric measurements. The inner contact on the 7/16 DIN connector measures 7mm while the outer contact on the connector measures 16 mm. Designed for communications systems, the 7/16 DIN connector can work with equipment with as much as 100 watts of power per channel.
7/16 DIN connectors are used in a variety of applications around the world. Some of these applications include: antennas, base stations, satellite communications, and other high power communications applications.
7/16 DIN connectors They are easy to install with or without the use of tools and wrenches. Their design prevents dust or other debris from interfering with the contacts. also come in a variety of different materials, including silver plated contacts, which provide for a large amount of conductivity, improved performance, and corrosion resistance.
N MALE CLAMP 7-16 ◆Cable assembly

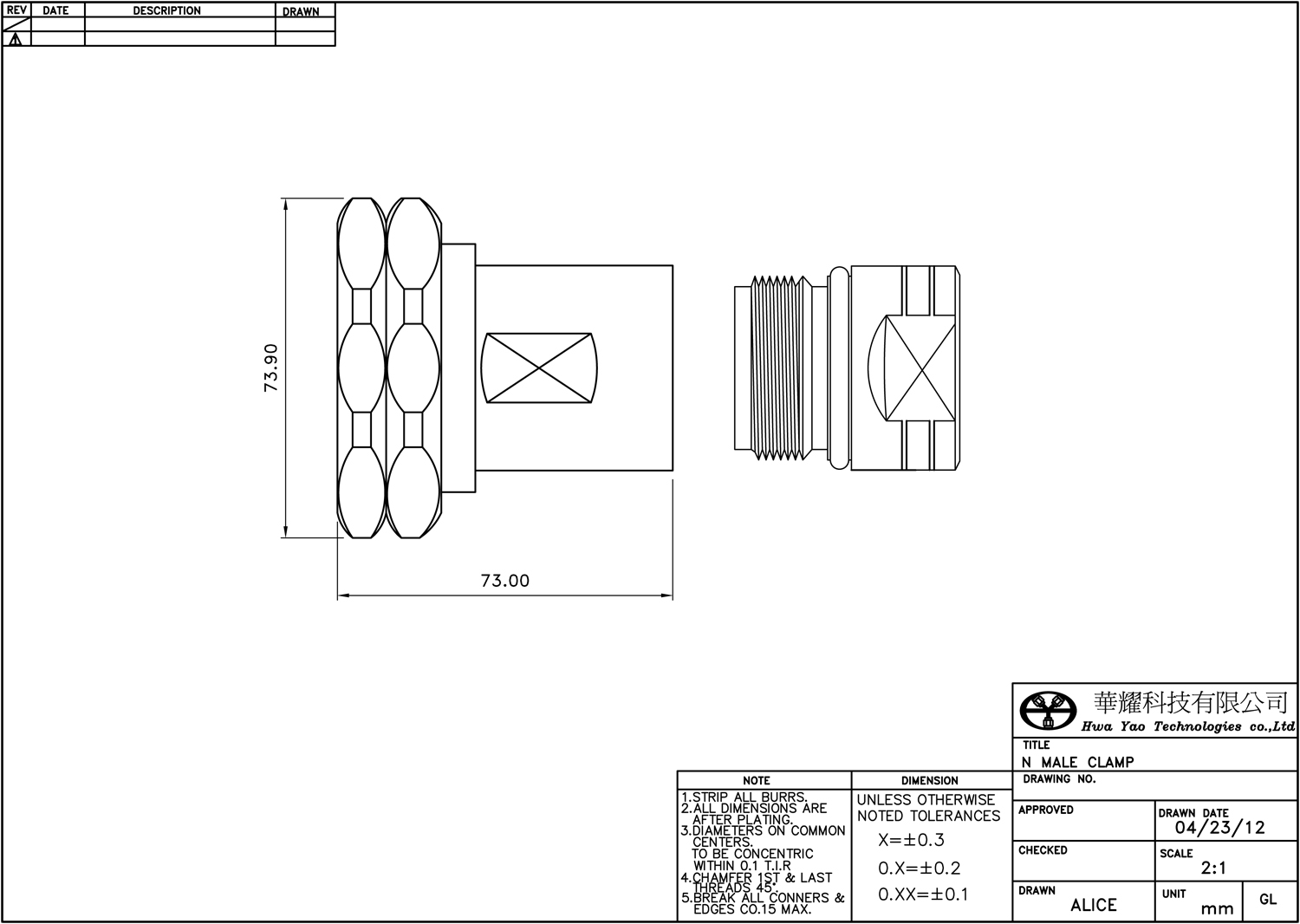

Interface Dimensions
Electrical
Impedance 50Ω
Frequency Range DC - 7.5 GHz
Return Loss 30 dB @ DC - 1.0 GHz (3 ft. assembly)
28 dB @ 1.0 - 2.0 GHz
21 dB @ 2.0 - 3.0 GHz
RF-Leakage 125 dB minimum
Voltage Rating (at sea level) ≥813 Vrms (depending on cable)
Average (Peak) Power Maximums 3.0 kW (13.2 kW)
Contact Resistance center contact: ≤ 0.4 mΩ
outer contact: ≤ 1.5 mΩ
Insulation Resistance 5,000 MΩminimum
Insertion Loss Maximum 0.05 dB @ 1 GHz
Dielectric Withstanding Voltage 2,300 Vrms (at sea level)
3rd order Inter-Modulation Distortion -120 dBm/ - 165 dBc typical
(+43 dBm carriers)
Environmental
Temperature Range -65°C to +165°C
Thermal Shock IEC 68, part 2-14, test Na
Immersion IEC 529, IP68
Corrosion IEC 68, part 2-1, test Ka
Vibration IEC 68, part 2-6
Mechanical Shock IEC 68, part 2-27
Materials
Male Contact Brass
Female Contact Beryllium copper
Other Metal Parts Brass per ASTM-B16, silver or white bronze plated
Insulator PTFE per ASTM-D1457
Gasket Silicone rubber (weatherproof), ZZ-R-75
Protective Coating Clear chromate (on silver plating)
Mechanical
Mating M29 x 1.5 threaded coupling nut
Attachment Method (inner/outer) captivated/compression
Coupling Torque, min./max. 15/20 lb-ft (20/28 N-m)
Coupling Nut Retention force 225 lbs (1000N) min.
Assembly Torque (body/clamp nut) positive stop, 18/20 lb-ft (25/30 N-m)
Durability (matings) 500 cycles min.
(DIN 47275, 2/10.82 section 2.10)
Note: These characteristics are typical but may not apply to all connectors.
