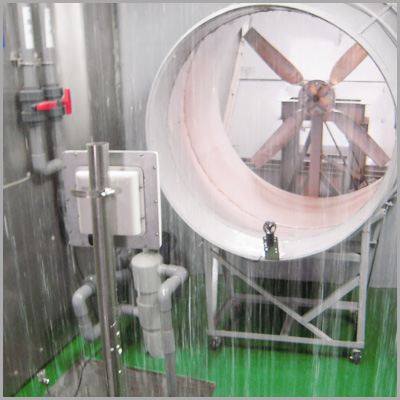

Wind Resistance Test

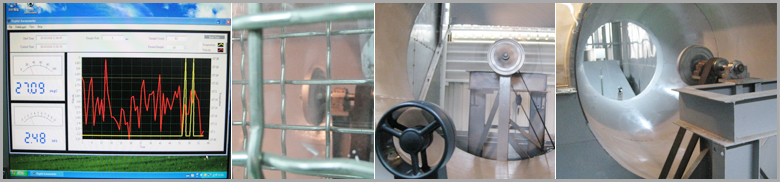

實驗室外觀 操作影片


The Beaufort Wind Scale
Force Wind Speed (W) Name by WMO

Effects on Land / Sea

m/s

knots

mph

km/h

0

0-0.2

0-1

0-1

0-1

Calm

Smoke rises vertically.
Sea is as calm as a mirror.

1

0.3-1.5

1-3

1-3

1-5

Light Air

Smoke drifts slowly.
Scaly ripples, no foam crests.

2

1.6-3.3

4-6

4-7

6-11

Light Breeze

Wind felt on face, leaves rustle.
Glassy crests, not breaking.

3

3.4-5.4

7-10

8-12

12-19

Gentle Breeze

Leaves and flags in motion.
Larger crests breaking, scattered whitecaps.

4

5.5-7.9

11-16

13-18

20-28

Moderate
Breeze

Small branches move, loose paper raised into the air.
Small waves growing longer, numerous whitecaps.

5

8.0-10.7

17-21

19-24

29-38

Fresh Breeze

Small trees sway.
Moderate waves in longer form, many white caps, some spray.

6

10.8-13.8

22-27

25-31

39-49

Strong Breeze

Large branches sway, whistling heard in power wires, umbrellas used with difficulty.
Larger waves, more spray, whitecaps seen everywhere.

7

13.9-17.1

28-33

32-38

50-61

Near Gale

Whole trees moving, resistance felt walking against the wind.
Heaps of waves, streaks of foam from breaking waves.

8

17.2-20.7

34-40

39-46

62-74

Gale

Twigs break off, walking against the wind impeded.
Fairly high waves of greater length, well-marked streaks.

9

20.8-24.4

41-47

47-54

75-88

Strong Gale

Large branches break off, slight structural damage.
High waves, rolling sea, dense streaks. Visibility reduces.

10

24.5-28.4

48-55

55-63

89-102

Storm

Trees uprooted, significant structural damage.
Sea is white in foam with very high waves colliding each other. Heavy rolling sea with further reduced visibility.

11

28.5-32.6

56-63

64-72

103-117

Violent Storm

Widespread damage.
Exceptionally high waves, sea covered with white foam. Violent rolling sea with significantly reduced visibility.

12

32.7-36.9

64-71

73-82

118-133

Hurricane

Violent movement of trees. Extreme damage. This is seldom encountered on land
Phenomenal waves, air filled with foam and driving spray. Visibility greatly reduced.


操作方式
將實驗室所有的氣窗打開 將前導板放下來 將後導風板放下來
先放下第一片後再放第二片 前導板放下完成圖 後導板放下完成圖
將待測物架設在固定支架並鎖緊 將測速器電源開啟並設定RS232模式 實驗室裡一切就緒後兩扇防風門都應鎖緊
將實驗室總電源開啟 變頻器開啟前請先將風力調節鈕歸零 開啟後可在螢幕看到風力測試值
一開始運作前要先檢查所有安全事項,啟動前請先確定風力調節鈕要先歸零,啟動後再慢慢增加風力請勿暴衝增加,一但實驗啟動嚴禁人員運作中進入實驗室以免發生危險。

雨水酸雨實驗


在化學上定義水之pH(酸鹼)值等於7為中性,>7為鹼性,<7為酸性 )自然大氣中含有大量二氧化碳,二氧化碳在常溫時溶解於雨水中並達到氣液相平衡後,雨水之酸鹼值約為 5.6,因此大自然的雨水是酸的,所謂「酸雨」認知為當雨水酸鹼值在 5.0 以下時,即確定受到人為酸性污染物的影響視為酸雨。

實驗範圍:一般性的防水測試與酸雨測試


請先將抽水馬達總開關開啟 打開抽水馬達避免雨量太大排水不及 出水要先選擇雨水或是酸雨測試
抽水選擇必須與出水相同以免混淆 將待測物架設在固定支架並鎖緊 開啟後再依客戶需求實驗
