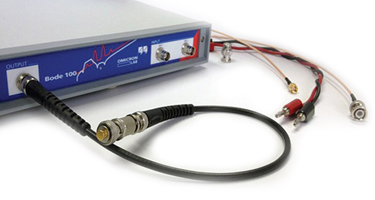

RF test cables & coaxial adapter
You in troubles for production line testing cables the? HWAYAOTEK provide you full range of customized microwave radio frequency components and configuration of microwave radio frequency (RF) components.
You to update or replace the network analyzer's high-frequency low-loss cables trouble? HWAYAOTEK provide you with a high-frequency low attenuation and low loss characteristics. Excellent amplitude stability and the curved insert the phase, as well as excellent flex life, and is very suitable to replace the original noble parts and components.
You trouble in a small amount and not easy procurement the? HWAYAOTEK provide you high quality and prices very beautiful but no MOQ choice
HWAYAOTEK, more than 10 years of work and research experience in RF high-frequency parts of the product, supply a range of cost-effective high performance test cables.And customized according to the customer production line QC or R & D and testing instruments demand a different assembly length and characteristics, welcomed the consultation.
|
|
|
|

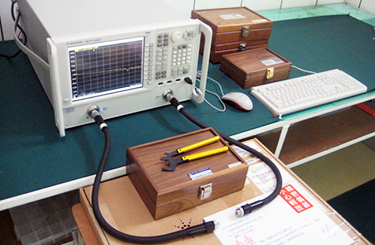

RF & Microwave Design equipment |
1. |
10 MHz to 67 GHz N5227A PNA Microwave Network Analyzer x1 |
2. |
85058E Economy Mechanical Calibration Kit, DC to 67 GHz, 1.85 mm x1 |
3. |
85056KE02 Economy Mechanical Calibration Kit, DC to 40 GHz, 2.92 mm x1 |
4. |
85052D Economy Mechanical Calibration Kit, DC to 26.5 GHz, 3.5 mm x1 |
5. |
N4697F Flexible Cable Set, 1.85 mm x2 |
6. |
100KHz TO 8.5GHzE5071C ENA Series Network Analyzer x2 |
7. |
E5071B ENA RF Network Analyzer x2 |
8. |
MS4624B ENA Series Network Analyzer x1 |
9. |
85033E Standard Mechanical Calibration Kit, DC to 9 GHz, 3.5 mm x1 |
10. |
85032F Standard Mechanical Calibration Kit, DC to 9 GHz, Type-N x1 |
|
|
Production line testing applications |
Due over the years HWAYAOTEK shipping and customer production line testing requirements 100Mhz - 9Ghz a wide range of RF connector line for customers to choose assembly to match and fast shipping with high quality access to customers with the advantage of price appreciation, you can choose what you need to match the connectors and coaxial cable, or to provide relevant information and data, we will be planning and design, to create the final products you need. The related RF connector parts / RF coaxial please the reference |
| |
*Choose how you want to connect the connector on the product* |
|
*The Select To connect the connector on the test instrument* |
*Select the type and length of coaxial cable* |
|
|
| |

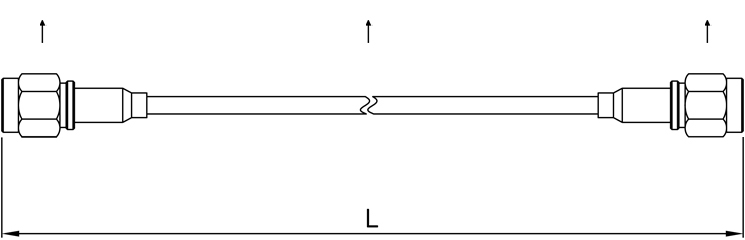

*Choose how you want to connect the connector on the product* |
*Select the type and length of coaxial cable* |

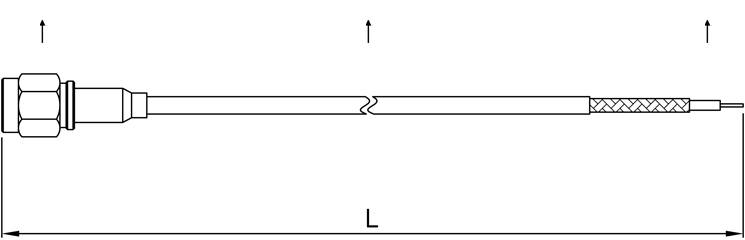

*Multi-stage stripping* |
|
|
|
Production lines are often used in RF connectors |
|
|
|
|
|
SMA PLUG |
RP SMA PLUG |
SMA JACK RIGHT ANGLE |
SMA JACK |
RP SMA JACK |
|
|
|
|
|
|
N PLUG |
N JACK |
N PLUG RIGHT ANGLE |
TNC PLUG |
TNC JACK |
|
|
|
|
|
|
TNC PLUG RIGHT ANGLE |
BNC PLUG |
BNC JACK |
MCX PLUG |
MCX PLUG RIGHT ANGLE |
|
|
|
|
|
|
MMCX PLUG |
MMCX JACK |
FME PLUG |
FME JACK |
MC CARD PLUG |
|
|
|
|
|
|
MC CARD PLUG RIGHT ANGLE |
MC CARD JACK |
SMB PLUG |
SMB JACK |
SMB RIGHT ANGLE |
|
* RF connector types showed off a large number of applications connector only if you have the demand for other connectors welcome contact us |
|

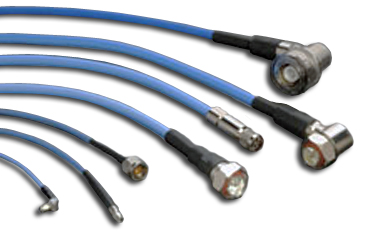

Production lines are often used in Microwave / RF Coaxial Cable
MIL-STD
|
RG174 Coaxial Cable |
|
Conductor |
Insulation |
Binder |
Braid Shield |
Jacket |
Material
Copper Strand
Composition
26AWG (7/0.16 mm)
Diameter
Approx. 0.48 mm
|
Material
XLPE
Minimum Thickness
0.455 mm
Nominal Thickness
Approx. 0.535 mm
Diameter
1.55 ± 0.05 mm
|
|
Material
Tinned Copper Wire
Composition
16 / 5 / 0.1 mm
Coverage
95%
|
Material
PVC
Minimum Thickness
0.22 mm
Nominal Thickness
Approx. 0.325 mm
Diameter
2.70 ± 0.10 mm
|
Remark |
Suitable for 100Mhz-3Ghz, Price cheap popularity cable
|
|
RG58/U Low Loss Coaxial Cable |
|
Conductor |
Insulation |
Binder |
Braid Shield |
Jacket |
Material
Bare Copper Wire
Composition
1 / 1.02 mm
Diameter
1.02 mm
|
Material
Foamed Polyethylene
Thickness
0.95 mm
Diameter
2.9 ± 0.1 mm
|
Material
Aluminum Foil
Thickness
0.020 mm |
Material
Tinned Copper Wire
Composition
16 x 5 / 0.12 mm
Picks/Inch
12
Diameter
3.4 ± 0.05 mm
|
Material
PVC
Color
Black
Diameter
5.00 ± 0.15 mm
|
Remark |
Suitable for 100Mhz-3Ghz,
Price cheap popularity cable
|
|
RG316 Coaxial Cable |
|
Conductor |
Insulation |
Binder |
Braid Shield |
Jacket |
Material
Silver-Coated Copper
Clad Steel
Composition
26AWG (7/0.175 mm)
Diameter
0.53 mm
|
Material
FEP
Average Thickness
0.51 mm
Color
Clear
Diameter
1.53 ± 0.03 mm
|
|
Material
Silver-Coated Copper
Composition
16 / 5 / 0.092 mm
Coverage
92.3%
|
Material
FEP
Average
Thickness
0.30 mm
Color
Black
Diameter
2.53 ± 0.10 mm
|
Remark |
Suitable for 100Mhz-6Ghz, Price cheap popularity cable
|
|
RG213/U Coaxial Cable |
|
Conductor |
Insulation |
Binder |
Braid Shield |
Jacket |
Material
Strand Bare
Copper Wire
Composition
7 / 0.752 mm
Diameter
2.3 mm
|
Material
Solid Polyethylene
Thickness
2.45 mm
Diameter
7.24 ± 0.10 mm
|
|
Material
Bare Copper
Composition
24 / 8 / 0.18 mm
Coverage
96%
Diameter
0.18 ± 0.008 mm
|
Material
NC-PVC
Color
Black
Diameter
10.3 ± 0.15 mm
|
Remark |
Suitable for 300Mhz-6Ghz
|
|
LLC100/LMR100 Coaxial Cable |
|
Conductor |
Insulation |
Binder |
Braid Shield |
Jacket |
Material
Copper Coated
Steel Wire
Composition
1 / 0.46 mm
Diameter
0.46 ± 0.03 mm
|
Material
Solid Polyethylene
Thickness
0.53 mm
Diameter
1.50 ± 0.1 mm
|
Material
Aluminum Foil
Thickness
0.020 mm |
Material
Tinned Copper Wire
Composition
16 x 5 / 0.10 mm
Coverage
95%
Diameter
1.92 ± 0.1 mm |
Material
PVC
Color
Black
Diameter
2.80 ± 0.10 mm
|
Remark |
For 100Mhz-6Ghz, Similar to RG316U low-loss cable
|
|
LLC200/LMR200 Coaxial Cable |
|
Conductor |
Insulation |
Binder |
Braid Shield |
Jacket |
Material
Bare Copper Wire
Diameter
1.12 ± 0.03 mm
|
Material
GAS-FPE
Color
Nature
Diameter
2.95 ± 0.1 mm
|
Material
Aluminum Foil
Diameter
0.020 mm |
Material
Bonded Aluminum Foil
Composition
16 x 4 / 0.10 mm
Coverage
59%
Diameter
0.1 ± 0.008 mm |
Material
See table above
Color
Black
Diameter
5.0 ± 0.10 mm
|
Remark |
For 100Mhz-8Ghz, Similar to RG58U low-loss cable
|
|
LLC400/ LMR400 Coaxial Cable |
|
Conductor |
Insulation |
Binder |
Braid Shield |
Jacket |
Material
Solid BCCAl
Diameter
2.74 mm |
Material
Foam PE
Color
Nature
Diameter
7.24 mm |
Material
Aluminum Tape
Diameter
7.39 mm |
Material
Tinned Copper
Diameter
8.13 mm |
Material
PVC
Color
Black
Diameter
4.95 ± 0.10 mm |
Remark |
For 100Mhz-11Ghz, Similar to RG213U low-loss cable
|
|
LMR600 Coaxial Cable |
|
Conductor |
Insulation |
Binder |
Braid Shield |
Jacket |
Material
Solid BCCAl
Diameter
4.74 mm |
Material
Foam PE
Color
Nature
Diameter
11.56 mm |
Material
Aluminum Tape
Diameter
11.71 mm |
Material
Tinned Copper
Diameter
12.45 mm |
Material
See table above
Color
Black
Diameter
14.99 mm |
Remark |
For 100Mhz-11Ghz, Antenna base station dedicated high transmission cable
|
|
*We only showed off a large number of applications coaxial cable If you have the demand for other connectors welcome to contact us |
|

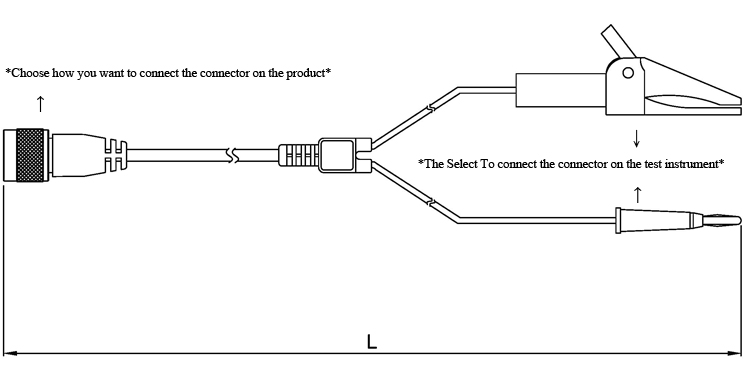

Coaxial Cable Assemblies and Breakouts |
Hwayaotek is the professional’s choice, whether in the lab, plant or in the
field. Using high-quality materials such as beryllium copper, gold and nickel plating ensures the precision you rely on. With a huge selection of cables and breakouts offering almost every connector
and clip combination, Hwayaotek provides you the solution for any application.
|
|
|
|
|
|
|
Connection test connectors |
|
|
|
|
|
SMA PLUG |
SMA JACK |
SMA JACK RIGHT ANGLE |
N PLUG |
N JACK |
|
|
|
|
TNC PLUG |
TNC JACK |
BNC PLUG |
|
|
Banana Plugs and Jacks Just need a reliable plug or jack? Making your own test set? Hwayaotek Electronics’ selection is designed to meet demanding electrical characteristics. Nickel-plated plugs feature brass bodies and one-piece heattreated beryllium copper springs with nylon or ABS insulation. Choose Hwayaotek for the reliable and dependable connections your work demands.
|
|
|
♦ The 4mm stackable plug are machined from brass with movable mutilam contact cage springs
♦ Contact surface: Gold/Nickel-plated
♦ Rated current: 19A 50V |
|
|
|
♦ The 4mm stackable safety plug are machined from brass with movable mutilam contact cage springs
♦ Contact surface: Gold/Nickel-plated
♦ Rated current: 19A 50V |
|
|
|
|
♦ The 4mm plug are machined from brass with movable mutilam contact cage springs
♦ Contact surface: Gold/Nickel-plated
♦ Rated current: 19A 50V |
|
|
|
♦ Adaptors for interconnecting between 2mm and 4mm system
♦ 4mm plug to 2mm socket
♦ 4mm plug to 4mm socket
♦ Contact surface: Nickel-plated
♦ Rated current: 19A 50V
♦ Color: Red. Black |
|
|
|
♦ Termination Banana, Female Socket (Jack)
♦ Maximum Voltage 1000V
♦ Current Rating 10A
♦ Color Black.Red
|
|
|
♦ MATERIALS Body Brass
♦ Finish Nickel Plated
♦ Operating Voltage 1500V
♦ Current 10 Amperes
|
|
|
♦ Material - Tip Steel, Nickel Plated
♦ Ratings CAT III, 600VRMS
♦ Color Black and Red
♦ Tip - Type Hook Clips
|
|
|
♦ Tip - Type Alligator Clip
♦ Color Black, Gray, Red
♦ Material - Tip Steel, Nickel Plated
♦ Ratings CAT III, 600VRMS
|
|
|
|
Patch Cords and Test Leads |
Hwayaotek has made it easy for you to have exactly what you need with a huge selection of patch cords and test leads designed for reliable, convenient connections. Whether you need a test lead that can access an IC pin without shorting or a patch cord that accommodates multiple stacking, Hwayaotek Electronics’ design and reliability are your connection with quality.
|
|
|
|
|
♦ 4mm stackable safety plug with cage springs
♦ Contact surface: Gold/Nickel-
plated
♦ Rated current: 19A 50V
|
♦ 4mm stackable plug with cage springs
♦ Contact surface: Gold/Nickel-
plated
♦ Rated current: 19A 50V
|
♦ 4mm plug with cage springs
♦ Contact surface: Gold/Nickel-
plated
♦ Rated current: 19A 50V
|
♦ 2mm stackable plug with cage springs
♦ Contact surface: Gold-plated
♦ Rated current: 10A 50V
|
|
|
|
|
|
♦ Ready assembled leads wire approx. 0.6M of 133/0.07mm extra-flexible cable.
♦ Terminated at one end by a 2mm stackable plug and a 35mm long
crocodile clip at the other.
♦ Contact surface: Gold-plated
|
♦ Ready assembled leads wire approx. 1M of 301/0.07mm extra-flexible cable.
♦ Terminated at one end by a 4mm stackable plug and a 35mm long
crocodile clip at the other.
♦ Contact surface: Nickel-plated.
|
♦ Ready assembled leads wire approx. 1M of 301/0.07mm extra-flexible cable.
♦ Terminated at one end by a
4mm stackable safety plug
and a 35mm long crocodile clip at the other.
♦ Contact surface: Nickel-plated
|
♦ Fully insulated leads with shrouded BNC plugs
complete with moulded-on strain reliefs using RG-58 cable. Black PVC shield. 50 [ impedance.
♦ Length: Overall length approx.
1M
|
|
|
|
|
|
♦ Fully insulated BNC test leads which impedance 50. using RG-58 cable is moulded to
stackable 4mm safety plugs in red and black.
♦ Length: Overall length approx.
1M
|

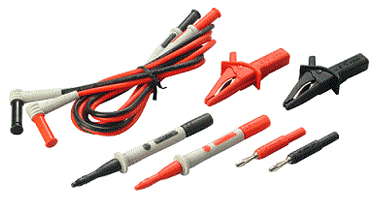

♦ A pair of multimeter test leads to suit meter with shrouded 4mm connector.
♦ The leads are CE approved.
IEC-1010 compatible.
♦ Terminated at one end with a rigid probe and a fixed sheath or
right angle or retractable shrouded 4mm plug at the other.
♦ Length: Overall length approx.
1M.
♦ Rate:1000V,10A
|
♦ A set of fully insulated leads with probes and clips.
♦ Terminated at one end with a rigid probe and a crocodile clip.
A fixed sheath or right angle or retractable shrouded 4mm plug at the other.
♦ Length: Overall length approx.
1M.
♦ Rate: 1000V.10A (clip excepted).
|
♦ A set of fully insulated leads with probes and clips.
♦ Terminated at one end with a rigid probe and a crocodile clip.
A fixed sheath or right angle or retractable shrouded 4mm plug at the other.
♦ Length: Overall length approx.1M.
♦ Rate: 1000V.10A (clip excepted).
|
|
|
