Main Supply Voltage: 3ψ220V
Frequency: 50~60Hz
Range of Output Voltage: 0~100％
Controlling Signal: 4~20mA、0~5V、1~5V、0~10V、2~10V
Range of supplying Temperature: 28~85℃(max200℃) or 82~185℉ (max392℉)
Time of measurable: 1sec~99hr

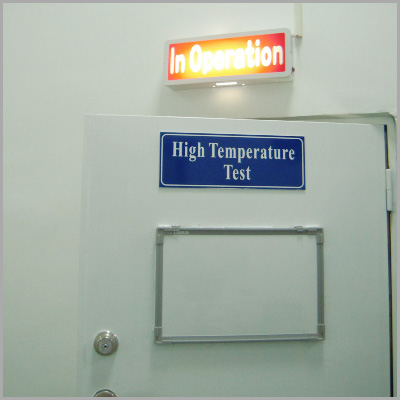

High and constant temperature laboratory is for getting the data of antennas which under high temperature for a long and constant time. We also could provide the data for customers’ variety of demands.
Method of Operation

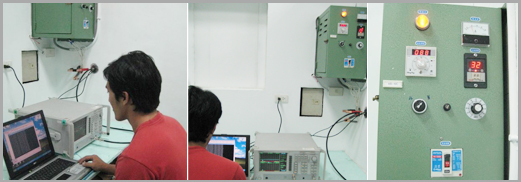

Controller
A: Light of Power ,B: Operating Current ,
C: Switch of Temperature , D: Switch of Time , E: On/ Off ,
F: Fuse , G:: Efficiency Knob , H: Switch of Power
Turn on the switch and start to operate
Notes: Keep switch of temperature and efficiency off before turning on the switch of power.

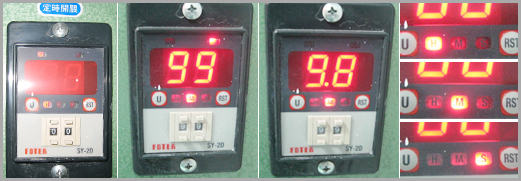

Time Setting
Press the select button one time for single figure; press twice for unit selection of seconds, minutes, hours,
Adjust testing temperature
Adjust the efficiency knob to 60~100%
Set up the antenna.
USB cable, RJ-45 cable, RF cable, adapter cable of single-phase & three-phase equipment
Put the antenna into the lab for testing ; We can increase the temperature in the controller and view the data with network analyzer, computer and measuring instrument at the same time to see if they meet expectation.
