Controller
A:guiding lights ,
B:timekeeper ,
C:switch ,
D:start ,
E:stop |
Set up 30minutes
1.first set up the calibration of turntable to 3
2.and the unit of measurement 10(3x10)=30
3.then the unit of time to minutes |

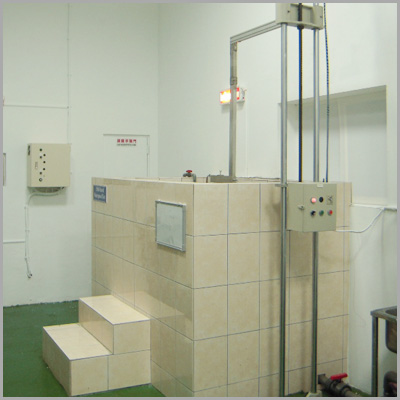

pour water into the sink and keep the depth over 100cm (setting the depth in 130cm) |
 |
 |
 |
| Make the testing product fixed on the test frame |
Turn on the switch |
Put the testing product into the water for 30 minutes |
 |
 |
 |
| Turn on the button of “start” and the testing frame will down into the bottom of sink. It will rise when the time is up. |
After 30 minutes, take off the testing product and clean it up. |
Take apart the testing product, if there’s no water in, the IP-67 testing is finalized. Otherwise, make some adjustment and re-test again. |
