Smoke rises vertically. Sea is as calm as a mirror.
1
0.3-1.5
1-3
1-3
1-5
Light Air
Smoke drifts slowly.
Scaly ripples, no foam crests.
2
1.6-3.3
4-6
4-7
6-11
Light Breeze
Wind felt on face, leaves rustle.
Glassy crests, not breaking.
3
3.4-5.4
7-10
8-12
12-19
Gentle Breeze
Leaves and flags in motion.
Larger crests breaking, scattered whitecaps.
4
5.5-7.9
11-16
13-18
20-28
Moderate
Breeze
Small branches move, loose paper raised into the air.
Small waves growing longer, numerous whitecaps.
5
8.0-10.7
17-21
19-24
29-38
Fresh Breeze
Small trees sway.
Moderate waves in longer form, many white caps, some spray.
6
10.8-13.8
22-27
25-31
39-49
Strong Breeze
Large branches sway, whistling heard in power wires, umbrellas used with difficulty.
Larger waves, more spray, whitecaps seen everywhere.
7
13.9-17.1
28-33
32-38
50-61
Near Gale
Whole trees moving, resistance felt walking against the wind.
Heaps of waves, streaks of foam from breaking waves.
8
17.2-20.7
34-40
39-46
62-74
Gale
Twigs break off, walking against the wind impeded.
Fairly high waves of greater length, well-marked streaks.
9
20.8-24.4
41-47
47-54
75-88
Strong Gale
Large branches break off, slight structural damage.
High waves, rolling sea, dense streaks. Visibility reduces.
10
24.5-28.4
48-55
55-63
89-102
Storm
Trees uprooted, significant structural damage.
Sea is white in foam with very high waves colliding each other. Heavy rolling sea with further reduced visibility.
11
28.5-32.6
56-63
64-72
103-117
Violent Storm
Widespread damage.
Exceptionally high waves, sea covered with white foam. Violent rolling sea with significantly reduced visibility.
12
32.7-36.9
64-71
73-82
118-133
Hurricane
Violent movement of trees. Extreme damage. This is seldom encountered on land Phenomenal waves, air filled with foam and driving spray. Visibility greatly reduced.
Manual
Open all of windows of Lab.
Put down the former plate
Put down the latter plate
Put down the first former plate and then put the second one
The former plate-finished
The latter plate- finished
Install the testing sample in the pole
Turn on the speed switch and set up to RS 232 mode
Lock the doors after the set up ready
Turn on the wind power switch
Set up the wind power button To “ Zero” before opening the frequency transformer.

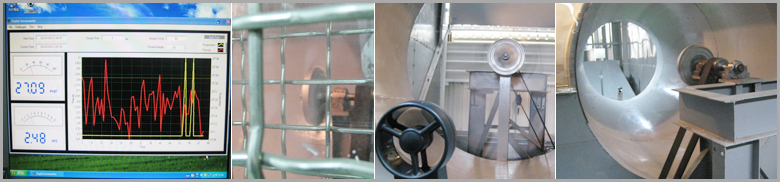

Then you can see the Wind power test reporting from the monitor
Pay the attention:
1. Check all things to be safety before operation. 2. Make sure the the wind power button is settle up to “Zero” before operation.
3. And then, increase the wind speed slowly. 4. No entry during the operation.
Rain water & Acid Rain Test
Defines pH of water in chemistry (acid and alkali), the value = (equal) is the neutrality, >7 is the alkalinity, <7 is the acidity). In the Ural atmosphere includes the massive carbon dioxide, the carbon dioxide when the normal temperature dissolves and achieves after the rain water is mad the liquid phase balanced, PH value of the rain water approximately is 5.6, therefore the nature rain water is the acid. So, when the rain water PH value below 5.0, we called it “the acid rain”. As a result, the influence of artificial acidic pollutant as the acid rain.

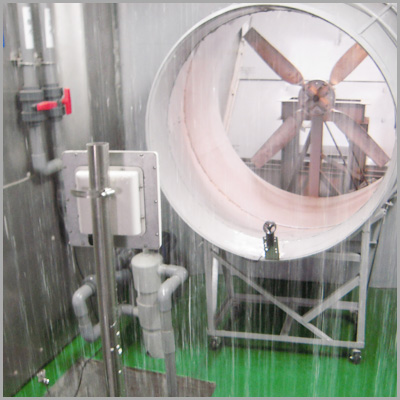

Testing: The normal Waterproof test and Acid rain test
Turn on the switch of pump motor
Open the pump motor avoids much of rain to affect drainage.
Choose the water leakage test of Rain water or Acid rain
The pump water must be chosen the same as the water leakage.
Install the testing sample and lock it on the pole
