20dBi |
PAII-2450-20
Panel II Antenna 20dBi with the2.4GHz Frequeney
 |
| This panel antenna delivers extended access point range in a single floor environment ideally positioned in the corner of a building. It functions from point-to-point so that you can wirelessly connect LANs between the buildings in a campus-type environment. |
 |
PAII-2450-20 |
|
• Designed for wireless
LAN communications |
| • Mounts easily for indoor or outdoor
applications |
| • Designed to obtain maximum gain |
| • Made with weatherproof and corrosion
resistant |
|
 |
 |
 |
 |
Technical
information |
Frequency: |
2400 - 2483MHz |
Gain: |
20.5dBi |
Polarization: |
Verticai |
|

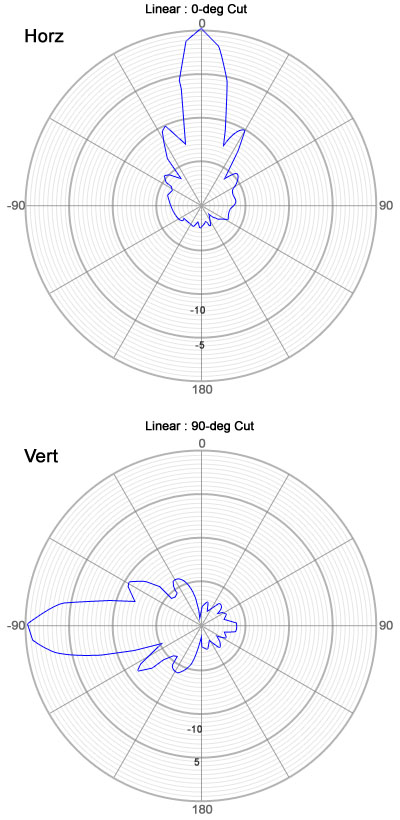

Beamwidth deg: Vertical & Horizontal |
Horizontal: 15° Vertical: 16° |

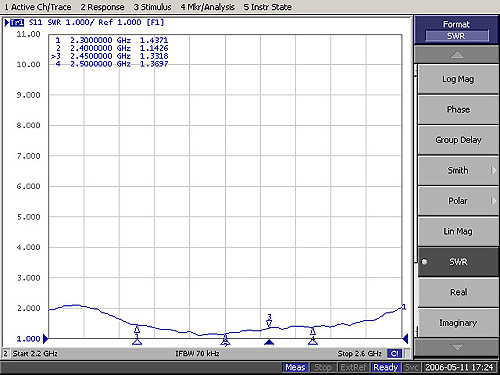

VSWR: |
≤1.5:1 |
Impedance: |
50 Ohm |
Dimensions |
Size: |
L351 x W396 x H34mm |
Weight: |
2300g |
Connector: |
N Female |
|
 |
 |
 |
 |
|
|
|
|
|
