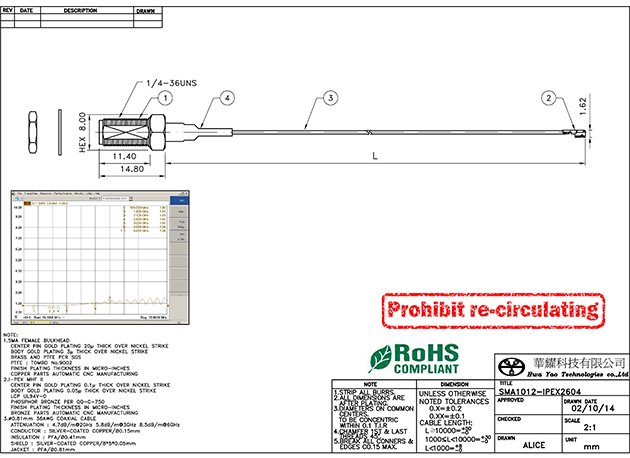

IPEX MHFII Plug Cable Assembly


Compatibility Information

Description
PN
PN
MHF II plug
20311-001R-08
Compatible to
Hirose U.FL plug
U.FL-LP-040
Sunridge MCBG plug
MCBG#68
IPEX Connector has designed several series MHF connectors which provide alternative of Hirose U.FL connector, Hirose W.FL connector, and Murata HSC connector. In downsize trend, IPEX Connector is devoted to design and manufacture these ultra small RF connectors as low profile as possible by micro precise stamping techniques. IPEX MHFII is the generation 2 of IPEX micro RF coaxial connector. It’s mating height (2.0mm) is lower than IPEX MHF (2.5mm). The frequency is up to 6GHz and can be used widely for application of GPS antenna and GPS modules, GSM antenna and GSM modules, WLAN cables and WLAN modules. Through I-PEX global sales network, I-PEX support customers’ R&D sites and production sites. I-PEX products line-up adds high value to your applications for winning in your market competition. I-PEX brand is widely accepted by global market leaders of PC, PC Peripherals, Mobile Phone, Wireless System, Digital Appliances, Hard Disk Drive, and Medical Equipment.

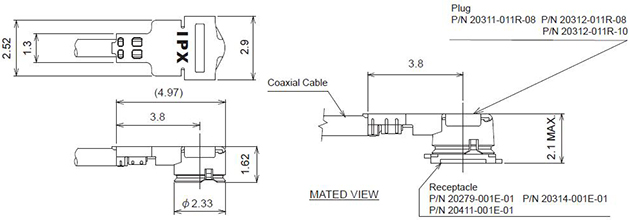

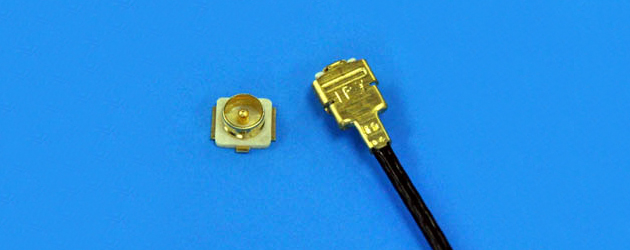

IPEX MHFII Mini Coax Connector

 • Rated Voltage: AC 60V
 • Temperature: -40℃ to +90℃
 • Characteristic Impedance: 50 ohm
 • Insulation Resistance: 1000M mega-ohm.km MIN.
 • Withstand Voltage: no breakdown at AC 1000V for 1 miniutes
 • Contact Resistance of inner conductor: 1400 ohm/km MAX.(Ground)


<Applicable Cable Gauge>

Part No.(Au)
20311-011R-08
20311-011R-10
Part No.(Ag)
20312-011R-08
20312-011R-10

For AWG#36
For AWG#33
Braided Shield of Outer Conductor
Single Braided Shield
Single Braided Shield

<Material and Finish>

Parts
Material
Plating/Color
HOUSING
PBT UL94V-0
NATURAL
CONTACT
COPPER ALLOY
Au
GROUND CONTACT
COPPER ALLOY
Au or Ag
