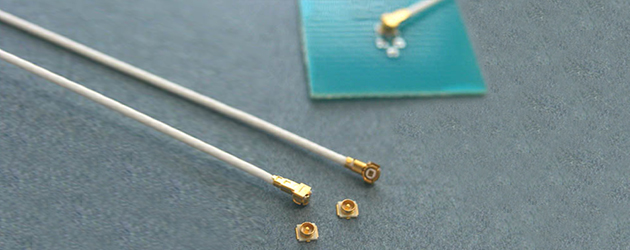

IPEX MHF III Plug Cable Assembly


Compatibility Information

Description
PN
PN
MHF III plug
20367-001R
Compatible to
Hirose U.FL plug
U.FL-LP-040
Sunridge MCBG plug
MCD#60, MCBG#68
IPEX Connector has designed several series MHF connectors which provide alternative of Hirose U.FL connector, Hirose W.FL connector, and Murata HSC connector. In downsize trend, IPEX Connector is devoted to design and manufacture these ultra small RF connectors as low profile as possible by micro precise stamping techniques. IPEX MHFIII is compatible to Hirose W.FL connector. IPEX (IPX) MHFIII is the generation 3 of IPEX micro RF coaxial connector. It has 1.5mm max. mating height and is lower than IPEX MHF2 (2.0mm). IPEX MHF3 can operate 0~6GHz frequency stably and is used widely for cell pone, WLAN, Bluetooth application and is designed in portable devices like PDA, NB. Through I-PEX global sales network, I-PEX support customers’ R&D sites and production sites. I-PEX products line-up adds high value to your applications for winning in your market competition. I-PEX brand is widely accepted by global market leaders of PC, PC Peripherals, Mobile Phone, Wireless System, Digital Appliances, Hard Disk Drive, and Medical Equipment.

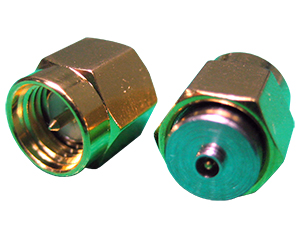

MHF III Test Adapters

Part Number
IPEX-2602-2-TGG
Description
SMA Male To MHF III Female Adapter
Impedance
50 ohm
Frequency Range
DC up to 6GHz
Temperature
-65℃ to +155℃
Body Finished
Gold
Contact Finished
Gold
Durability
1000 Cycles Min


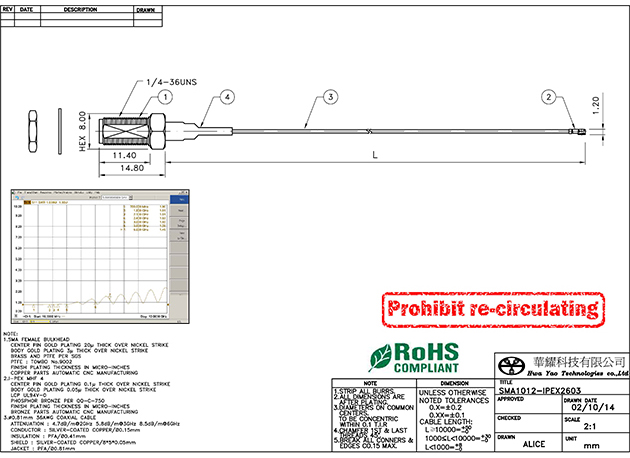

I-PEX, IPEX, IPX MHF III Cable Connector

 • Rated Voltage: AC 60V
 • Temperature: -40℃ to +90℃
 • Characteristic Impedance: 50 ohm
 • Insulation Resistance: 1000M mega-ohm.km MIN.
 • Withstand Voltage: no breakdown at AC 1000V for 1 miniutes
 • Contact Resistance of inner conductor: 1400 ohm/km MAX.(Ground)
 • Frequency Range: DC up to 6GHz (VSWR: 1.3 max. at 0.1~3GHz; VSWR: 1.5 max. at 3~6GHz)


<Applicable Cable Gauge>

Part No.(Au)
20367-001R
Part No.(Ag)


For AWG#36
Braided Shield of Outer Conductor
Single Braided Shield

<Material and Finish>

Parts
Material
Plating/Color
HOUSING
PBT UL94V-0
NATURAL
CONTACT
COPPER ALLOY
Au
GROUND CONTACT
COPPER ALLOY
Au
