IPEX MHF IV Plug Cable Assembly


Compatibility Information

Description
PN
PN
MHF IV plug
20448-001R-08
Compatible to
Hirose U.FL plug
MHXP32
Sunridge MCBG plug
MM4829-2702RA4

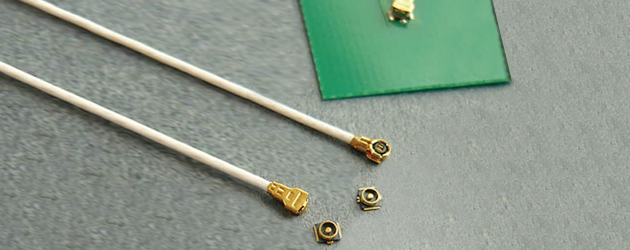

IPEX Connector has designed several series MHF connectors which provide alternative of Hirose U.FL connector, Hirose W.FL connector, and Murata HSC connector. In downsize trend, IPEX Connector is devoted to design and manufacture these ultra small RF connectors as low profile as possible by micro precise stamping techniques. IPEX (IPX) MHF IV connector (20448-001r-081) is compatible to Murata HSC MXHP32 connector. It is the smallest mini RF connector in the world. Only 1.2mm low profile, MHF IV IPEX cable connectors and SMT connector provide good working performance in various application of Wireless LAN Through I-PEX global sales network, I-PEX support customers’ R&D sites and production sites. I-PEX products line-up adds high value to your applications for winning in your market competition. I-PEX brand is widely accepted by global market leaders of PC, PC Peripherals, Mobile Phone, Wireless System, Digital Appliances, Hard Disk Drive, and Medical Equipment.

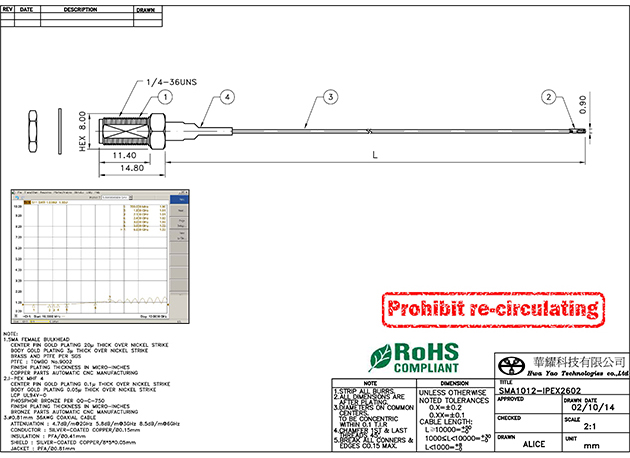

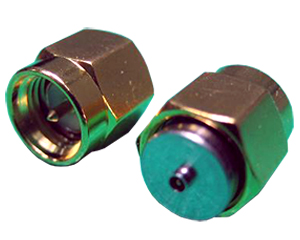

MHF IV Test Adapters

Part Number
IPEX-2602-4-TGG
Description
SMA Male To MHF IV Female Adapter
Impedance
50 ohm
Frequency Range
DC up to 6GHz
Temperature
-65℃ to +155℃
Body Finished
Gold
Contact Finished
Gold
Durability
1000 Cycles Min

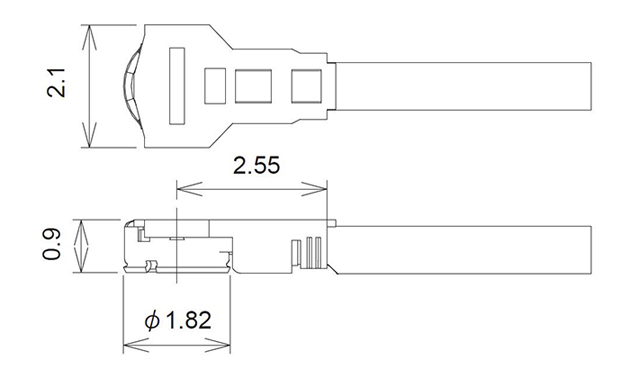

I-PEX, IPEX, IPX MHF IV Cable Connector

 • Rated Voltage: AC 60V
 • Temperature: -40℃ to +90℃
 • Withstand Voltage: AC 200V
 • Characteristic Impedance: 50 ohm
 • Insulation Resistance: 500M ohm Min./DC 100V
 • Contact Resistance of inner conductor: 20m ohm max.(Signal) and 10m ohm max.(Ground)
 • Frequency Range: DC up to 6GHz (VSWR: 1.3 max. at 0.1~3GHz; VSWR: 1.5 max. at 3~6GHz)

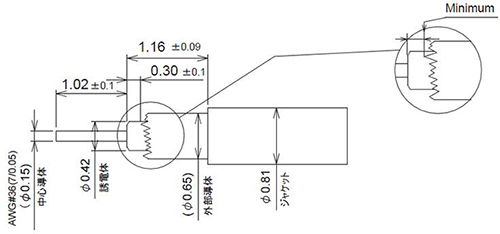

<Applicable Cable Gauge>

Part No.(Au)
20448-001R-081
Part No.(Ag)


For AWG#36
Braided Shield of Outer Conductor
Single Braided Shield

<Material and Finish>

Parts
Material
Material(SMT PLUG)
Plating/Color
HOUSING
PBT UL94V-0
PBT UL94V-0
BLACK
CONTACT
COPPER ALLOY
COPPER ALLOY
Au
GROUND CONTACT
COPPER ALLOY
COPPER ALLOY
Au
