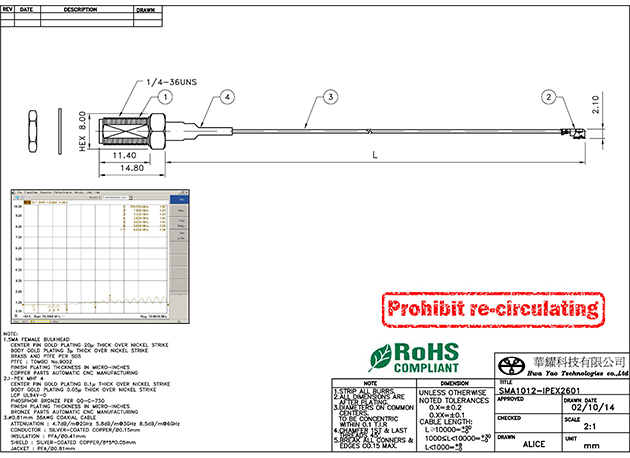

IPEX MHF Plug Cable Assembly


Compatibility Information

Description
PN
PN
MHF plug
2028-112R-08
Compatible to
Hirose U.FL plug
U.FL-LP-040
Sunridge MCBG plug
MCBG#68
20278-112R-13
Compatible to
Hirose U.FL plug
U.FL-LP-068
Sunridge MCBG plug
MCBG#59
20278-112R-32
Compatible to
Hirose U.FL plug
U.FL-LP-066
Sunridge MCBG plug
MCBG#59
20351-112R-37
Compatible to
Hirose U.FL plug
U.FL-LP-088
IPEX Connector has designed several series MHF connectors which provide alternative of Hirose U.FL connector, Hirose W.FL connector, and Murata HSC connector. In downsize trend, IPEX Connector is devoted to design and manufacture these ultra small RF connectors as low profile as possible by micro precise stamping techniques.
Through I-PEX global sales network, I-PEX support customers’ R&D sites and production sites. I-PEX products line-up adds high value to your applications for winning in your market competition. I-PEX brand is widely accepted by global market leaders of PC, PC Peripherals, Mobile Phone, Wireless System, Digital Appliances, Hard Disk Drive, and Medical Equipment.

MHF Test Adapters

Part Number
IPEX-2602-1-TGN
Description

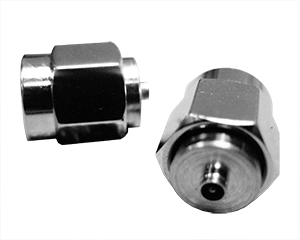

SMA Male To MHF Female Adapter
Impedance
50 ohm
Frequency Range
DC up to 6GHz
Temperature
-65℃ to +155℃
Body Finished
Elector less Nickel Plating
Contact Finished
Gold
Durability
1000 Cycles Min

Part Number
SMA-1068-1-TGG
Description

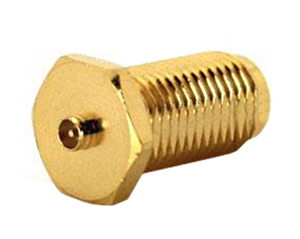

SMA Female To MHF Female Adapter
Impedance
50 ohm
Frequency Range
DC up to 6GHz
Temperature
-65℃ to +155℃
Body Finished
Gold
Contact Finished
Gold
Durability
1000 Cycles Min


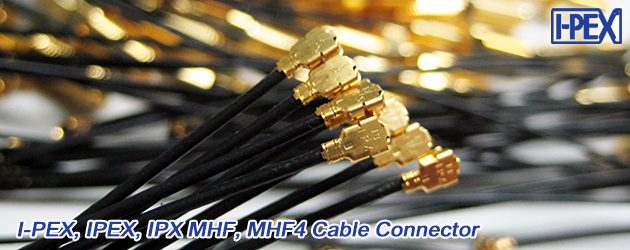

I-PEX, IPEX, IPX MHF Cable Connector

 • Rated Voltage: AC 60V
 • Temperature: -40℃to +90℃
 • Characteristic Impedance: 50 ohm
 • Insulation Resistance: 1000M mega-ohm.km MIN.
 • Withstand Voltage: no breakdown at AC 1000V for 1 miniutes
 • Contact Resistance of inner conductor: 1500 ohm/km MAX.(Ground)
 • Frequency Range: DC up to 6GHz (VSWR: 1.3 max. at 0.1~3GHz; VSWR: 1.5 max. at 3~6GHz)


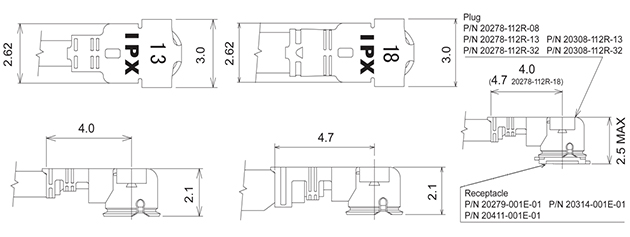

<Applicable Cable Gauge>

Part No.(Au)
20278-112R-08
20278-112R-13
20278-112R-32
20278-112R-18
Part No.(Ag)

20208-112R-13
20208-112R-32


For AWG#36
For AWG#32
For AWG#32
For AWG#30
Braided Shield of Outer Conductor
Single Braided Shield
Single Braided Shield
Double Braided Shield
Single Braided Shield

<Material and Finish>

Parts
Material
Plating/Color
Note
HOUSING
PBT UL94V-0
NATURAL or BLACK
ONLY Au 08, Au 18 is NATURAL
CONTACT
COPPER ALLOY
Au

GROUND CONTACT
COPPER ALLOY
Au or Ag
