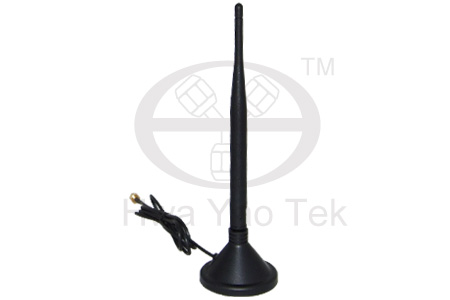

| Antenna 5dBi +MAGE BASE + RP SMA MALE + RG174 L=1000mm |
| |
 |
| |
| Applications: |
- 1.71GHz-2.17GHz 05dBi ISM Band
- DCS1800 GSM1800 1.8GHz 2G
- PCS1900 GSM1900 1.9GHz
- PCS2000 GSM2000 3G 3.5G
- WiFi, CDMA, RFID, GSM
- Directional and multipoint applications
- Public Wireless Hotspot
- Wireless Video Systems
|
|
| Features : |
- Superior performance
- Light weight
- Easy set up
- 1m cable
- Mage Base
- 360 degree OMNI directional
- RoHS Compliant
|
|
| |
 |
A5BM-10013R174-A1000 |
|
| |
| SPECIFICATIONS: |
| Applications: |
| Frequency Range |
1.71~2.17GHz |
| V.S.W.R |
≤1.5 |
| Return Loss |
≥-14db |
| Antenna Type |
Collinear |
| Gain |
5dBi |
| Polarization |
Vertical |
| Maximum Power |
50W |
| Vertical Beam-with |
20° |
| Horizontal Beam-with |
360° |
| Impedance |
50Ω |
| Connector |
RP SMA Male |
|
|
|
| Mechanical Specifications: |
Length
|
174mm |
| Diameter |
13mm |
| Weight |
75g |
| Wind Survival |
N/A |
| Radome Material |
Black ABS |
| Operating Temperature |
－40℃ to ＋80℃ |
| Clamps |
N/A |
| Mounting |
N/A |
| RoHS Compliant |
YES |
|
|
|
| |
| |
|
|
