| You Are Here: Home > 2.0GHz-2.1GHz Antenna > Directional Panel WLAN Antenna |
| |
Taiwan Wireless antenna/wifi Antenna/Antenna2.4ghz 5.8ghz Dual Band DVB-T Wlan Antenna/RFconnector/Cable Asseccblies/Antenna Accessoriess

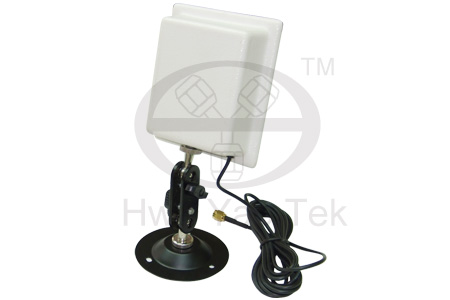

PANEL Antenna II 1.71~2.17GHz 08dBi
for RP SMA MALE L=1500mm |
| |
 |
| |
| Applications: |
- 1.71GHz-2.17GHz 08dBi ISM Band
- DCS1800 GSM1800 1.8GHz 2G
- PCS1900 GSM1900 1.9GHz
- PCS2000 GSM2000 3G 3.5G
- WiFi, CDMA, RFID, GSM
- Directional and multipoint applications
- Public Wireless Hotspot
- Wireless Video Systems
|
|
| Features : |
- Superior performance
- Light weight
- Cable 1.5m
- Multiple options
- Durable UV-stable
- Can be installed for either vertical or horizontal polarization
- RoHS Compliant
|
|
| |
 |
PAII-1721-08RP-SMA |
|
| |
| SPECIFICATIONS: |
| Applications: |
| Frequency Range |
1.71~2.17GHz |
| V.S.W.R |
≤1.5 |
| Return Loss |
≥-14db |
| Antenna Type |
PCB patch array |
| Gain |
08dBi |
| Polarization |
Vertical or Horizontal |
| Maximum Power |
50W |
| Vertical Beam-with |
75° |
| Horizontal Beam-with |
38° |
| Impedance |
50Ω |
| Connector |
RP SMA male/1.5m |
|
|
|
| Mechanical Specifications: |
Size
|
L150 x W90 x H30mm |
| Weight |
245g |
| Wind Survival |
N/A |
| Radome Material |
ABS + UV resistance |
| Operating Temperature |
－40℃ to ＋80℃ |
| Clamps |
Multiple options |
| Mounting |
Multiple options |
|
|
|
| |
| |
|
|
