| You Are Here: Home > 2.3GHz-2.4GHz Antenna > Directional Panel WLAN Antenna |
| |
Taiwan Wireless antenna/wifi Antenna/Antenna2.4ghz 5.8ghz Dual Band DVB-T Wlan Antenna/RFconnector/Cable Asseccblies/Antenna Accessoriess

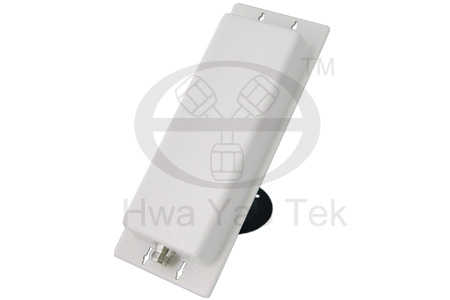

| PANEL Antenna II 2.3~2.5GHz 12dBi
for N FEMALE |
| |
 |
| |
| Applications: |
- 2.3GHz-2.5GHz 12dBi ISM Band
- IEEE 802.11X Wireless LAN
- Directional and multipoint applications
- Public Wireless Hotspot
- WiMAX, WiBro
- Wireless Video Systems
|
|
| Features : |
- Superior Performance
- The Weight is light
- Good appearance designs
- Optional Mounting Kits available
- Installed for vertical or horizontal polarization
- Heavy Duty mounting
- RoHS Compliant
|
|
| |
 |
PAII-2325-12N-F |
|
| |
| SPECIFICATIONS: |
| Applications: |
| Frequency Range |
2.3~2.5GHz |
| V.S.W.R |
≤1.5 |
| Return Loss |
≥-14db |
| Antenna Type |
PCB patch |
| Gain |
12dBi |
| Polarization |
Vertical or Horizontal |
| Maximum Power |
50W |
| Vertical Beam-with |
28° |
| Horizontal Beam-with |
65° |
| Impedance |
50Ω |
| Connector |
N-Female |
|
|
|
| Mechanical Specifications: |
Size
|
L241 x W90 x H33mm |
| Weight |
360g |
| Wind Survival |
N/A |
| Radome Material |
ASA + UV resistance |
| Operating Temperature |
－40℃ to ＋80℃ |
| Clamps |
Multiple options |
| Mounting |
Multiple options |
| RoHS Compliant |
YES |
|
|
|
| |
 |
| |
|
|
