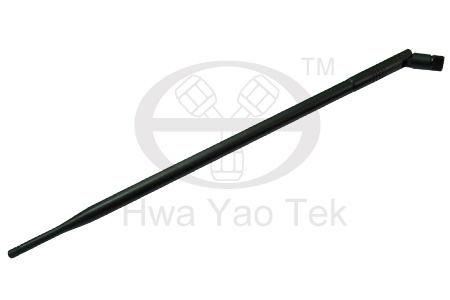

2.4GHz Dipole Antenna 9dBi RP-SMA(M) |
| |
 |
| |
| Applications: |
- 2.4GHz-2.5GHz 09dbi ISM Band
- IEEE 802.11b,802.11g,802.11b/g,802.11n Wirless Lan
- Omni Directional Mulitpoint applictions
- Bluetooth ,Point to Mulotpoint
- Pubic Wirless Hotspot
- WiFi,RFID
- Wireless Video Systems
|
|
| Features : |
- Superior Performance
- The Weight is light
- Good appearance designs
- Installed for Collinear Vertial Polarization
- Multiple options
- Outdoor antenna for public Hot spots
- RoHS Compliant
|
|
| |
 |
DA-2450-09-04 |
|
| |
| SPECIFICATIONS: |
| Applications: |
| Frequency Range |
2.4~2.5GHz |
| V.S.W.R |
≤2.0:1 |
| Return Loss |
≥-10db |
| Antenna Type |
Collinear |
| Gain |
9dBi |
| Polarization |
Vertical |
| Maximum Power |
50W |
| Vertical Beam-with |
15° |
| Horizontal Beam-with |
360° |
| Impedance |
50Ω |
| Connector |
RP SMA Male |
|
|
|
| Mechanical Specifications: |
Length
|
394mm |
| Diameter |
13mm |
| Weight |
60g |
| Wind Survival |
N/A |
| Radome Material |
Black ABS |
| Operating Temperature |
－20℃ to ＋60℃ |
| Clamps |
N/A |
| Mounting |
N/A |
| RoHS Compliant |
YES |
|
|
|
| |
| |
|
|
