2.4GHz-2.5GHz Antenna
> MIMO Antenna |
| |
Taiwan Wireless antenna/wifi Antenna/Antenna2.4ghz 5.8ghz Dual Band DVB-T Wlan Antenna/RFconnector/Cable Asseccblies/Antenna Accessoriess
MIMO PANEL Antenna II 2.4~2.5GHz 09dBi
for SMA FEMALE |
| |
 |
| |
| Applications: |
- 2.4GHz-2.5GHz Applications
- IEEE 802.11b, 802.11g, 802.11n MIMO Wireless LAN
- Public Wireless Hotspot
- Directional and multipoint applications
- Wi-Fi, RFID
- Wireless Video Systems
- Bluetooth
|
|
| Features : |
- Superior Performance
- Good appearance designs
- Outdoor antenna for public Hot spots
- Installed for vertical or horizontal polarization
- Heavy Duty mounting
- The Weight is light
- RoHS Compliant
|
|
| |
|
| |
| SPECIFICATIONS: |
| Applications: |
| Frequency Range |
2.4~2.5GHz |
| V.S.W.R |
≤1.5 |
| Return Loss |
≥-14db |
| Antenna Type |
Collinear |
| Gain |
9dBi |
| Polarization |
Vertical |
| Maximum Power |
50W |
| Vertical Beam-with |
10° |
| Horizontal Beam-with |
90° |
| Impedance |
50Ω |
| Connector |
SMA Female x 2 |
|
|
|
| Mechanical Specifications: |
Size
|
L245 x D90mm |
| Weight |
250g |
| Wind Survival |
> 120 MPH |
| Radome Material |
White Fiberglass |
| Operating Temperature |
－40℃ to ＋80℃ |
| Clamps |
Multiple options |

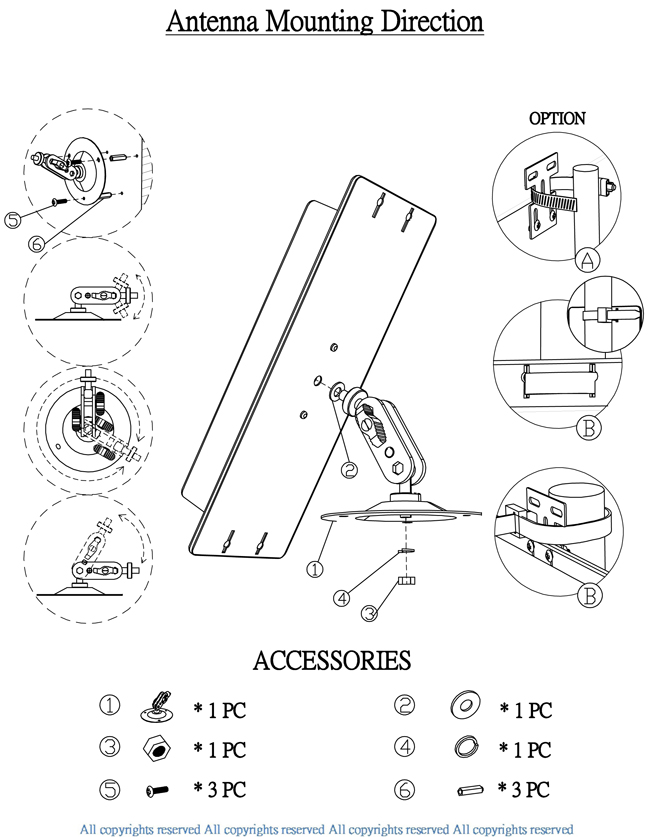

| Mounting |
Multiple options |
| RoHS Compliant |
Yes |
|
|
|
| |
 |
| |
|
|
