MIMO PANEL Antenna II 5.1~5.9GHz 14dBi
for N FEMALE


Applications:
  • 4.9~6.1 GHz Applications
  • WiMAX,CDMA
  • 802.11a WiFi Networks
  • Frequency Ultra-wide
  • Wireless Lan Systems
  • Public Wireless Hotspot
  • 802.16WiMax Networks
  • Directional application
Features :
  • Superior Performance
  • Good appearance designs
  • Installed for vertical or horizontal polarization
  • Heavy Duty mounting
  • The Weight is light
  • RoHS Compliant

PAII-5000-14N-FM01

SPECIFICATIONS:
Applications:
Frequency Range 5.1~5.9GHz
V.S.W.R ≤1.5
Return Loss ≥-14db
Antenna Type Collinear
Gain 14dBi
Polarization Vertical or Horizontal
Maximum Power 50W
Vertical Beam-with 32°
Horizontal Beam-with 48°
Impedance 50Ω
Connector N Female x 2
Mechanical Specifications:
Size

L455 x D130mm
Weight 520g
Wind Survival > 120 MPH
Radome Material White Fiberglass
Operating Temperature -40℃ to +80℃

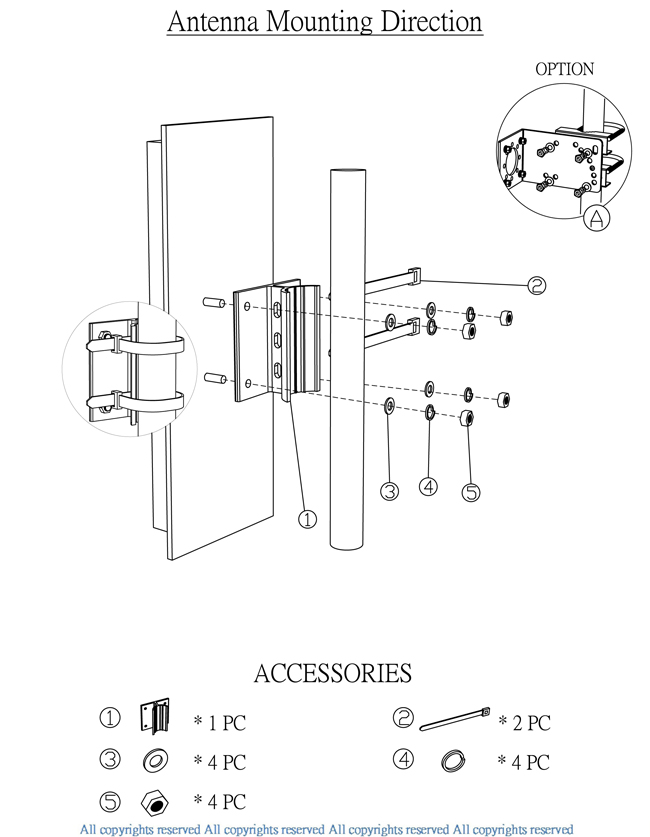

Clamps Multiple options
Mounting Multiple options
RoHS Compliant Yes
