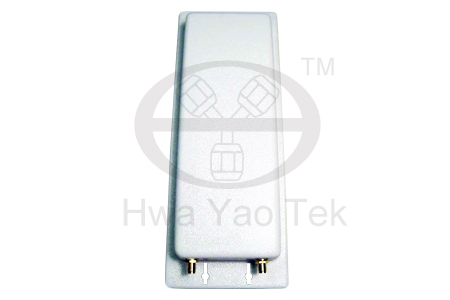

PANEL Antenna II 5GHz 14dBi for SMA FEMALE


Applications:
  • 5.1GHz-5.9GHz 14dBi ISM Band
  • Directional and multipoint applications
  • WiMax, CDMA
  • Public Wireless Hotspot
  • Frequency Ultra-wide
  • Wireless Lan Systems
  • 802.11a WiFi Networks
  • 802.16 WiMax Networks

Features :
  • Includes tilt and swivel mast mount brackets
  • Installed for vertical or horizontal polarization
  • Support is up and down or so to adjust
  • Behind and support is an aluminum
  • Superior performance
  • The weight is light
  • RoHS Compliant

PAII-5000-14RPSMA-D01

SPECIFICATIONS:
Applications:
Frequency Range 5.1~5.9GHz
V.S.W.R ≤1.5
Return Loss ≥-14db
Antenna Type PCB patch
Gain 14dBi
Polarization Vertical or Horizontal
Maximum Power 50W
Vertical Beam-with 20°
Horizontal Beam-with 20°
Impedance 50Ω
Connector SMA-Femalex2
Mechanical Specifications:
Size

L215 x W90 x H30mm
Weight 284g
Wind Survival >150 MPH
Radome Material ABS + UV resistance
Operating Temperature -40℃ to +80℃
Clamps Multiple options
Mounting Multiple options
RoHS Compliant YES
