| You Are Here: Home > 824MHz-960MHz Antenna > GSM Antenna |
| |

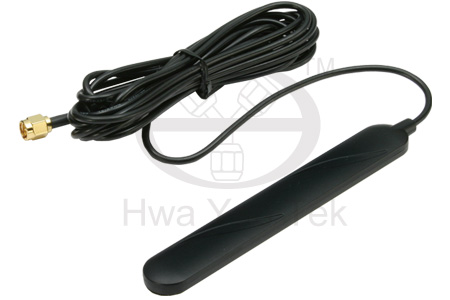

| GSM W/ SMA MALE R/A + RG174u L=3000mm |
| |
 |
| |
| Applications: |
- 824~960/ 1800~1990 MHz ISM Band
- Directional and multipoint applications
- Public Wireless Hotspot
- WiFi, CDMA, RFID, GSM
- Wireless Video Systems
- PCS1900 GSM1900 1.9GHz
|
|
| Features : |
- Superior performance
- Light weight
- Easy set up
- Mage Base
- 360 degree OMNI directional
- RoHS Compliant
|
|
| |
 |
AIR-3-SMA1001-3M |
|
| |
| SPECIFICATIONS: |
| Applications: |
| Frequency Range |
824~960 1800~1900 MHz |
| V.S.W.R |
≤2.0:1 |
| Return Loss |
≥-10db |
| Antenna Type |
Collinear |
| Gain |
3dBi |
| Polarization |
Vertical |
| Maximum Power |
50W |
| Horizontal Beam-with |
360° |
| Impedance |
50Ω |
| Connector |
SMA-Male |
|
|
|
| Mechanical Specifications: |
Length
|
115 x 21 mm |
| Diameter |
4mm |
| Weight |
20g |
| Wind Survival |
N/A |
| Radome Material |
Black ABS |
| Operating Temperature |
－40℃ to ＋80℃ |
| Clamps |
N/A |
| Mounting |
N/A |
| RoHS Compliant |
Yes |
|
|
|
| |
| |
|
