802.11a/b/g/n High Power USB Adapter |
|
Driver Download Area |
|

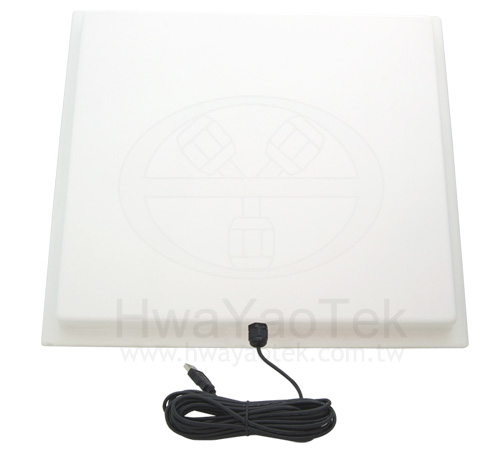

802.11b/g 1000mw USB Adapter Antenna 20dBi |
|
|
|
SPECIFICATIONS: |
PANEL Atenna Specifications: |
Frequency Range |
2.4~2.483GHz |
V.S.W.R |
≤1.5:1 |
Gain |
20dBi |
Polarization |
Vertical |
Vertical Beam-with |
±15° |
Horizontal Beam-with |
±16° |
Impedance |
50Ω |
Size |
L315 × W396 × H34mm |
USB cable length |
10meter |
|
|
|
USB Specifications: |
Standard
|
IEEE 802.11b/g |
Frequency Range |
2.4~2.483GHz |
Chipset |
Realtek 8187L + 8225 |
Security |
64/128bit WEP, WPA, WPA2, 802. 1x and 802.11i |
Date Rate |
11g: 54, 48, 36, 24, 18, 12, 9 and 6Mbps with auto-rate fall back |
11b: 11, 5.5, 2, and 1Mbps with auto-rate fall back |
Transmitter Output Power |
11g:24dBm (T ypical)±1 |
11b:30dBm (Typical)±1 |
Receive Sensitivity |
Operating at 11Mbps: @ -80dBm |
Operating at 54Mbps: @ -68dBm |
Operating System Support |
Windows 98se, Me, 2000, XP, Vista and 7 |
Power Consumption |
290mA at 5VDC (Max.) |
|
|
|
|
|
|
