| 802.11a/b/g/n High Power USB Adapter |
| |
 Driver Download Area |
| |

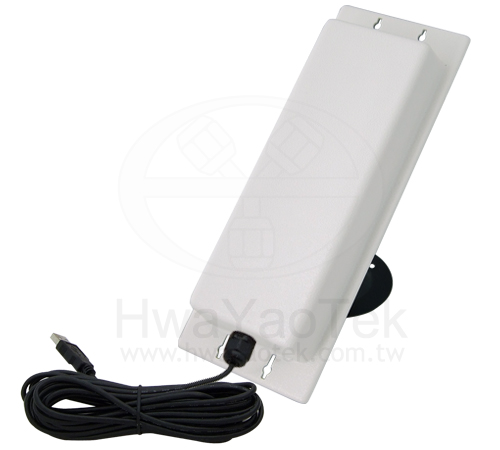

| 802.11b/g/n 300mw USB Adapter Antenna 12dBi |
| |
 |
| |
|
| |
| SPECIFICATIONS: |
| Antenna Electrical Specifications |
| Frequency Range |
2.4~2.483GHz |
| V.S.W.R |
≤1.5 |
| Return Loss |
≤-14db |
| Gain |
12dBi Antenna |
| Antenna Type |
Collinear |
| Polarization |
Vertical or Horizontal |
| Maximum Power |
50W |
| Vertical Beam-with |
28° |
| Horizontal Beam-with |
65° |
| Impedance |
50Ω |
| Connector |
USB 5m CABLE |
|
|
|
| Technical Information |
Standard
|
IEEE 802.11b/g/n |
| RFOutput
Power(Typical) |
802.11b: up to 25 ± 1 dBm |
| 802.11g: up to 20 ± 1 dBm |
| 802.11n: up to 19 ± 1 dBm |
| Security |
64/128bit WEP, WPA(TKIP with IEEE 802.1x),
WPA2(AES with IEEE 802.1x), WPA Mixed |
| Date Rate |
802.11b: 11, 5.5, 2 and 1 Mbps with auto-rate
fall back |
| 802.11g: 54, 48, 36, 24, 18, 12, 9 & 6Mbps |
| 802.11n(20MHz): up to 72Mbps |
| 802.11n(40MHz): up to 150Mbps |
| Size |
L241x W90XH33mm |
| Weigh |
500g |
| Operation Voltage |
5V |
| Sensitivity |
-95dBm @ 802.11b |
| -92dBm @ 802.11g |
| -90dBm @ 802.11n |
| OS Supported |
Windows®2000, XP 32/64, Vista 32/64, Win7
32/64 |
|
|
|
| |
|
|
