| You Are Here: Home >
Wireless Accessory
> 802.11a/b/g/n High Power USB Adapter |
| |
| 802.11a/b/g/n High Power USB Adapter |
| |
 Driver Download Area |
| |

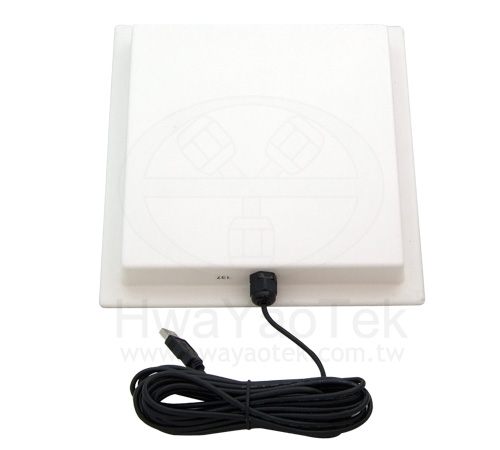

| 802.11b/g 500mw USB Adapter Antenna 14dBi |
| |
 |
| |
| SPECIFICATIONS: |
| PANEL Atenna Specifications: |
| Frequency Range |
2.4~2.483GHz |
| V.S.W.R |
≤1.5:1 |
| Gain |
14dBi |
| Polarization |
Vertical |
| Vertical Beam-with |
20° |
| Horizontal Beam-with |
20° |
| Impedance |
50Ω |
| Size |
L239 × W239 × H30mm |
| USB cable length |
10meter |
|
|
|
| USB Specifications: |
Standard
|
IEEE 802.11b/g |
| Frequency Range |
2.4~2.483GHz |
| Chipset |
Realtek 8187L + 8225 |
| Security |
64/128bit WEP, WPA, WPA2, 802. 1x and 802.11i |
| Date Rate |
11g: 54, 48, 36, 24, 18, 12, 9 and 6Mbps with auto-rate fall back |
| 11b: 11, 5.5, 2, and 1Mbps with auto-rate fall back |
| Transmitter Output Power |
11g : 15 ± 2dBm@54Mbps, EVM<-24dB |
| 11b : 25 ± 2dBm, EVM <35% |
| Receive Sensitivity |
11Mbps:<-82dBm@8%PER, |
| 54Mbps:<-65dBm@10%PER |
| Operating System Support |
Windows 98se, Me, 2000, XP, Vista and 7 |
|
|
|
| |
|
|
