| 802.11a/b/g/n High Power USB Adapter |
| |
 Driver Download Area |
| |

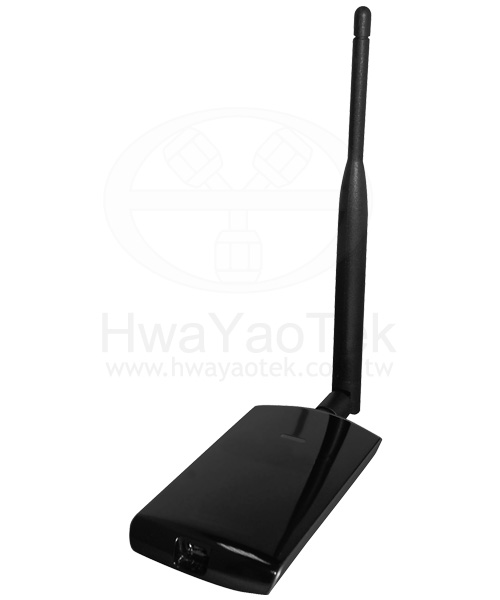

| 802.11b/g High Power 1000~1300mW USB Adapter |
| |
 |
 |
| |
 |
USB-2450-30 |
|
| |
| SPECIFICATIONS: |
Standard
|
IEEE 802.11b/g |
| Frequency Range |
2.400GHz~2.484GHz |
| Chipset |
Realtek 8187L + 8225 |
| Antenna Gain |
5dBi |
| Access Protocol |
CSMA/CA |
| Date Rate |
802.11g: 54, 48, 36, 24, 18, 12, 9 & 6Mbps |
| 802.11b: 11, 5.5, 2 and 1 Mbps with auto-rate fall back |
| Security |
64/128bit WEP |
| WPA(TKIP with IEEE 802.1x) |
| WPA2(AES with IEEE 802.1x) |
| Number of operation channel |
2.412~2.462GHz(Canada, FCC) / 11Channels |
| 2.412~2.484GHz(Japan, TELEC) / 14 Channels |
| 2.412~2.472GHz(Euro, ETSI) / 13 Channels |
| RF Output Power(Typical) |
802.11b: up to 30 ± 1 dBm |
| 802.11g: up to 24 ± 1 dBm |
| Sensitivity |
-85dBm @ 11Mbps |
| -73dBm @ 54Mbps |
| Operation Voltage |
5V |
| Operating Temperature |
0 ~ 60 Celsius |
| Storage Temperature |
-20 ~ 70 Celsius |
| Humidity |
10 ~90% (non-condensing) |
| Operating System |
Windows98SE, ME, 2000, XP, SP2, Vista, MAC, Linux |
| Interface |
mini USB |
| Size |
L99 x W60 x H16 mm |
| Weight |
167.5g |
| Verification of compliance |
RoHS, CE |
|
|
|
| |
 |
| |
|
|
