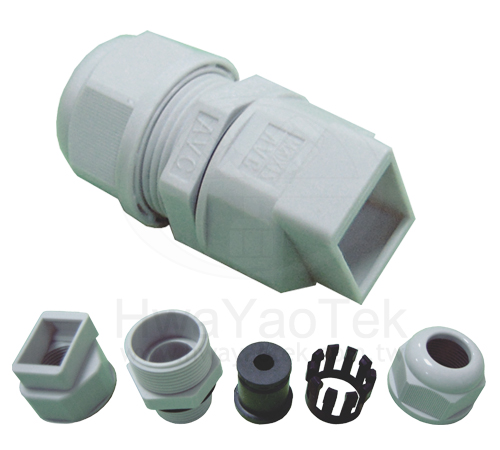

Outdoor Ethernet Waterproof connector

I.Outdoor Ethernet Waterproof connector

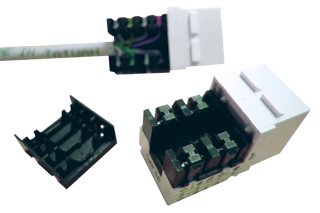

The RF connector are with IP68 waterproof test. And keystone jack can be option.

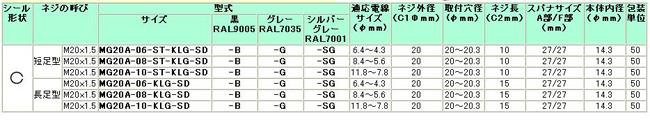

Applicable wire range from Φ6.4 to 4.3mm and the main C1 hole is 20mm.

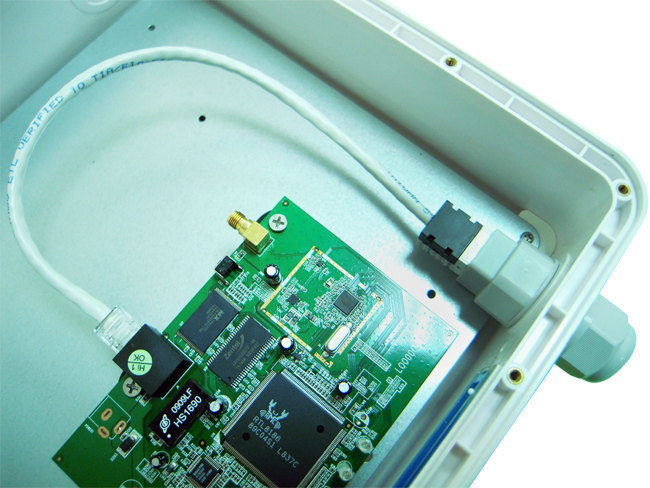

The RJ45/Cat5e weatherproof connector provides flexibility and multi function for Ethernet system, WiFi connection needs and CPE enclosure are for panel (Chassis ) connection.
The receptacle of this shielded RJ45 is enclosed by UV protected housing and terminated by a cable gland.
It can adapt to existing network cables such as UPT, STP or FTP RJ45 Cable. The gasket was supported to meet the weatherproof capability and more resistive to water entry. With an IP67 waterproof rating, It can withstand in dusty environment and immersion in water and corrosive elements.

RJ45 is a kind of system that can be used for outdoor applications which will proved flexibility that can sue pre-terminated cables. The wireless connectors will allow a quickly and easy connect and disconnect system.

mounting part
ISO / m screws (standard EN60423/UN) material -claw seal lock nut nut body Ethernet: 66 nylon (UL94V-2) washer seal: EPDM (custom NBR)

Features :

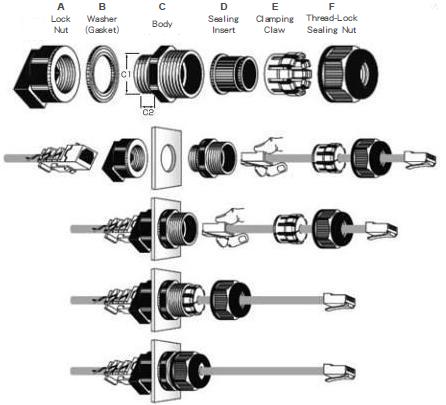

a lock nut onto the Ethernet Cat5e modular, modular Cat5e RJ45 connector to connect to is passed through the body (from the side slit part) seal nut, nails, seal the LAN cable. Ensure waterproof seal in the housing nut tighten. As a network connector such a is ideal .

※ Cat5e modular is not included. (Please purchase a commercially available product.)

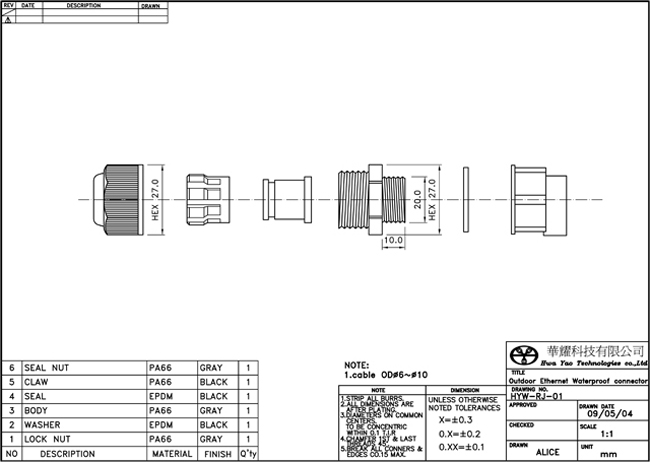

HYW-RJ-01

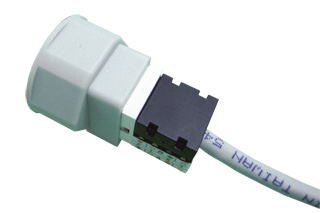

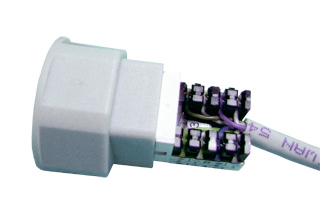

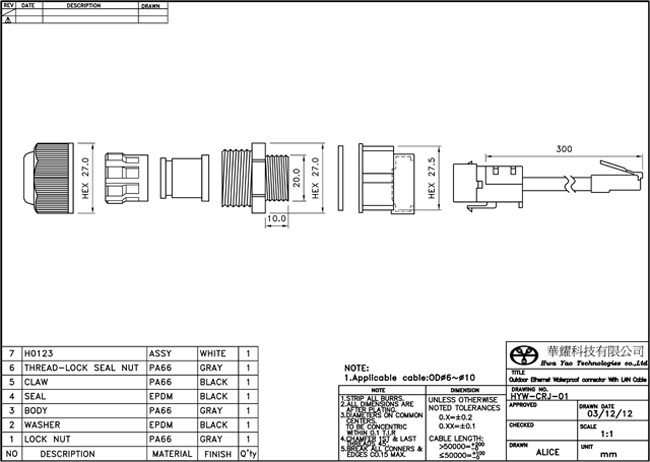

II.Outdoor Ethernet Waterproof connector With LAN    Cable 30cm

HYW-CRJ-01

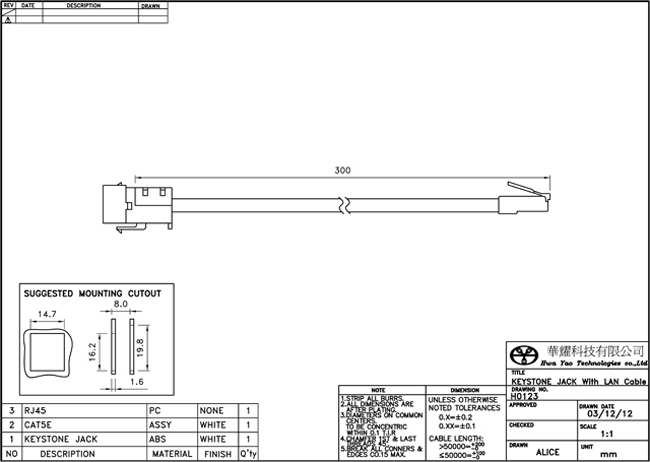

H0123
