CTII-2450-14
All of Hwa Yao Tek CPEs are IP67 waterproof approval
Protect your device for raining season
CTII Antenna 14dBi Gain Wireless LAN Antenna with 2.4 GHz to 2.5GHz Frequency
--------------------------------------------------------------------------------------------------------
An integrated antenna and weatherproof enclosure. Mount your AP of choice inside the antenna. The customer electronic equipment is protected within a L255xW255xH100 mm weatherproof compartment, big enough to house transceivers, access points, routers, amplifiers and other electronic equipment.
The weatherproof housing is constructed of UV stabilized ABS plastic and accommodates horizontal or vertical antenna polarity. The CTII antenna is available in our original version and also a newer low profile version with RPSMA,MC Card, MMCX ,RPMMCX and U.FL antenna connectors.
CTII-2450-14

•  Designed for wireless LAN communications
•  Mounts easily for indoor or outdoor applications
•  Designed to obtain maximum gain
•  Made with weatherproof and corrosion resistant
Technical Information
Frequency: 2400 - 2483MHz
Gain: 14 dBi
HPBW: 28 °
SWR: ≤1.5:1
Impedance: 50 Ohm
Dimensions
Size: L255 x W255 x H100mm
Weight: 2090g
Connector: sma-type / female
Available Options
AP (Installed and Tested): Senao 3054CB3+
Connection (20cm pigtail) TNC male RP
SMA male RP
MC card
MMCX male RA
MMCX male RA AP
IPEX/U.FL
Return Loss & VSWR

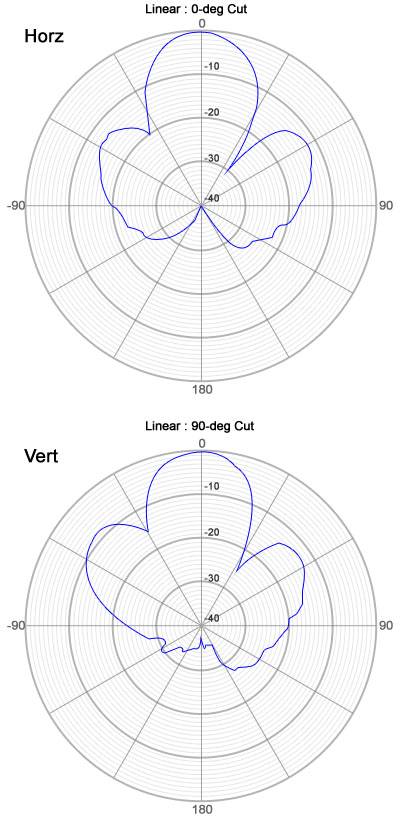

plane field patterns
Select Item
Special Offer "CAT-5 UV Lan Cable"
MOQ 100pcs has to order with CPE II
MOQ 100pcs has to order with CPE II
