National Kaohsiung Marine University Technological Cooperation
CPE IV Antenna
Welcome any brand name or Customer's Router Board, Wireless miniPCI card, Access Point Board OEM and installation, please contact us for more detail.
CPE 14 dBi
CPE 16 dBi
--------------------------------
CPE II 14 dBi
CPE II 16 dBi
--------------------------------
CPE IV 6 dBi
--------------------------------
CPE V 14 dBi
CPE V 18 dBi
--------------------------------
CPE VI 11 dBi
Combination of Art and Technology
Including 2pcs 6dBi Omni Antenna
(CTIV-2450-06)
This desgin is not met IP67, just for indoor using
Please select from below
Photo Number
Photo 001
Photo 002
Photo 003
Photo 004
Photo 005
Photo 006
Photo 007
Photo 008
Photo 009
Photo 010
Feature:
• Installation free, Cable-free
• No
more ice-cold equipment !
• Artistic design and save rooms.
• Simple design. Plug in and ready to use
• Only one painting is required wherever there is weak wifi signal.
• High invisibility to prevent form destruction or being stolen away.

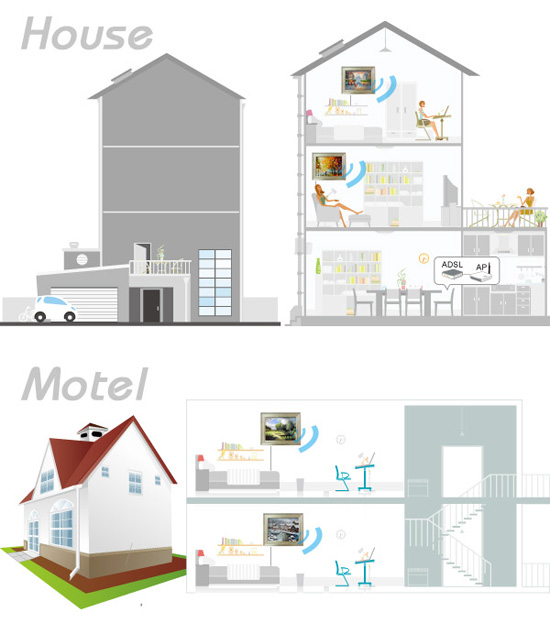

• Suitable in any public area such as restaurants, guest houses, libraries, and museums.

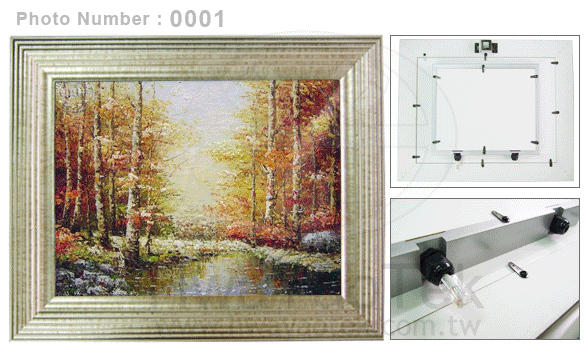

CTIV-2450-06
Handcraft Oil Painting
You can select 10 different paintings
Serial Number : 0001
Serial Number : 0002
Serial Number : 0003
Serial Number : 0004
Serial Number : 0005
Serial Number : 0006
Serial Number : 0007
Serial Number : 0008
Serial Number : 0009
Serial Number : 0010
Specification
Application:
Indoor
Frequency:
2400~2500MHz
Max gain:
6 dBi
Antenna radiation:
Omni-directional
HPBW/H:
360°
HPBW/V:
25°
VSWR:
≤1.5:1
Connecter:
RP-SMA male
Coaxial cable:
RG174,30cm
Operating temperature:
0°C~50°C
Storage temperature:
-20°C~70°C
Operating / Storage humidity:
20%~95%
Dimension:
L585 x W455 x H60.6mm
Weight:
1500g
