TECHNICAL SPECIFICATION

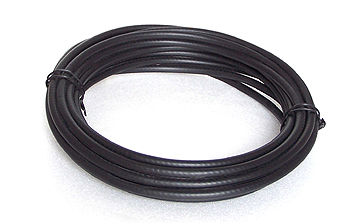

LOW LOSS 200 COAXIAL CABLE

 Composition(No./mm)

1/1.12mm

Conductor

 Material

Bare Copper Wire

 Outside Diameter (mm)

1.12±0.03mm

 Material

Gas Injected Foamed Polyethylene

Insulation

 Thickness (mm)

0.84mm

 Nom. Diameter(mm)

2.80±0.1mm

Shield

 Material

(1) Bonded Aluminum Foil

(2) Tinned Copper Wire

 Construction

0.025mm

16x6/0.12mm

 Coverage

88%

 Diameter(mm)

0.12±0.008mm

 Material

PVC

Jacket

 Diameter(mm)

4.95±0.10m

 Color

Black

Printing

 LOW LOSS 200 50 OHM COAXIAL CABLE NFC/HYT 3D

 ELECTRICAL CHARACTERISTIC

 Impedance

W

50±3

 Insulation Resistance

MW / km

1000 ­

 Capacitance

pF/M

80.4±3

 Attenuation

Frequency(MHz)

30

150

450

900

1500

1800

2500

dB/100M

5.8

13.1

22.8

32.6

42.4

46.6

55.4

DRWN. No.:

4LMR20009601001M1

Date:NOV. 05, 2004
