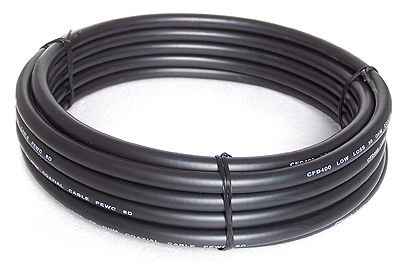

LLC 400 cable
Physical Characteristics
Type Nr.
Inner
Conductor O.D.
in (mm)
Dielectric
O.D.
in (mm)
Outer
Conductor O.D.
in (mm)
Standard
Jacket
in (mm)
Weight
kg/m
Low Loss 400
1/4"
RG8/U
JIS
8D type
109 (2.77)
Copper-clad
aluminum
1.41Ω/Mft
4.60Ω/km
.285 (7.24)
closed-cell
PE
.320 (8.13)
Sealed Al./
Mylar*/Al.+
Tinned copper braid,
85%
1.65Ω/Mft
5.41Ω/km
405 (10.3)
Black PVC
0.108
Electrical Characteristics
Nominal
Impedance
(ohms)
Nom.
Velocity of
propagation
Capacitance
pF / ft (pF/m)
Nominal Attenuation
MHz
dB/
dB/
100ft
100m
50
85%
24.5 (78.4)
30
67
2.2
150
1.5
5.0
450
2.7
8.8
900
3.9
12.7
1500
5.1
18.6
2000
6.0
19.6
2500
6.8
22.2
5500
10.2
30.5
