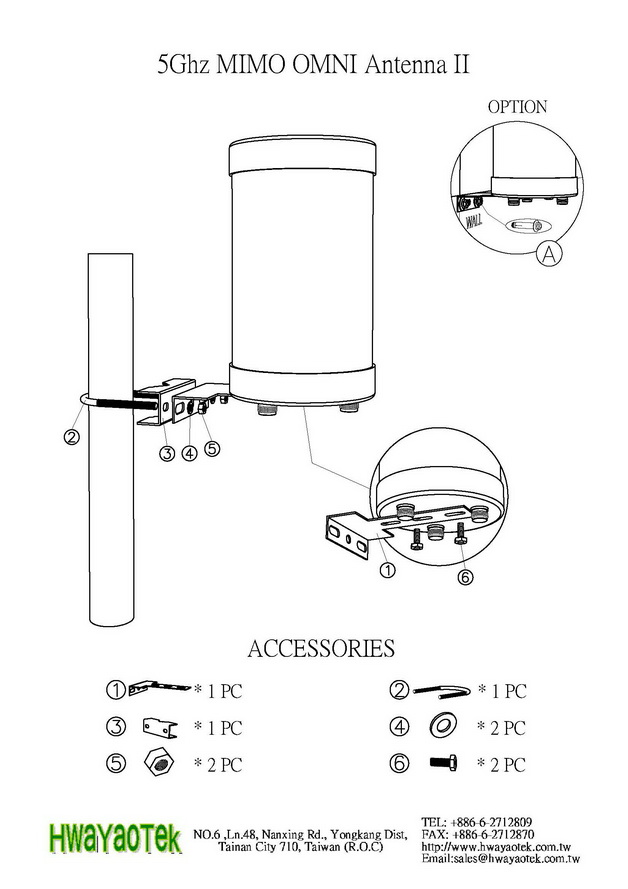

MIMO Omnidirectional Antenna II 5.1~5.9GHz 08dBi
for N FEMALE |
| |
 |
| |
| Applications: |
- 5.1GHz-5.9GHz Applications
- IEEE 802.11a Applications
- 802.16WiMax Networks
- Directional and multipoint applications
- Wi-Fi, Wimax , CDMA
- Wireless Video Systems
|
|
| Features : |
- Superior Performance
- Good appearance designs
- Installed for vertical or horizontal polarization
- Heavy Duty mounting
- The Weight is light
- RoHS Compliant
|
|
| |
|
| |
| SPECIFICATIONS: |
| Applications: |
| Frequency Range |
5.1~5.9GHz |
| V.S.W.R |
≤1.5 |
| Return Loss |
≥-14db |
| Antenna Type |
Collinear |
| Gain |
8dBi |
| Polarization |
Vertical |
| Maximum Power |
50W |
| Vertical Beam-with |
26° |
| Horizontal Beam-with |
360° |
| Impedance |
50Ω |
| Connector |
N Female x 3 |
|
|
|
| Mechanical Specifications: |
Size
|
L215xD114mm |
| Weight |
580g |
| Wind Survival |
> 120 MPH |
| Radome Material |
ABS + UV resistance |
| Operating Temperature |
－40℃ to ＋80℃ |
| Clamps |
Multiple options |
| Mounting |
Multiple options |
| RoHS Compliant |
Yes |
|
|
|
| |
 |
| |
|
|
