| Specification |
| Model |

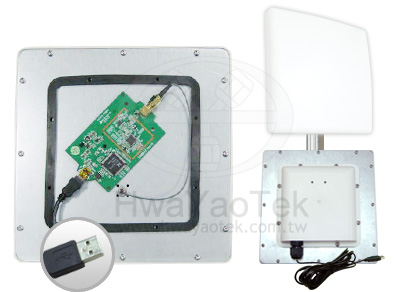

usb-2450-30-14 |
| Standard |
IEEE 802.11b/g |
| Antenna Gain |
14dbi |
| Frequency Range |
2.400GHz~2.48GHz |
| Operating Frequency / Channel |
2.412~2.462GHz(Canada, FCC) / 11Channels |
| 2.412~2.484GHz(Japan, TELEC) / 14 Channels |
| 2.412~2.472GHz(Euro, ETSI) / 13 Channels |
| Modulation Technique |
Orthogonal frequency division multiplexing (OFDM) |
| Direct Sequence Spread Spectrum (CCK, DQPSK, DBOSK) |
| Security |
64/128bit WEP, WPA, WPA2, 802. 1x and 802.11i |
| Media Access Protocol |
CSMA/CA (Collision Avoidance) |
| Output Power (HIGH-POWER) |
11g:24dBm (T ypical)±1 |
| 11b:30dBm (Typical)±1 |
| Data Rate |
11g: 54, 48, 36, 24, 18, 12, 9 and 6Mbps with auto-rate fall back |
| 11b: 11, 5.5, 2, and 1Mbps with auto-rate fall back |
| Sensitivity: |
54Mbps: -68dBm |
| 11Mbps: -80dBm |
| Working Mode |
Ad-Hoc or Infastructure |
| Throughput |
22Mbps@54Mbps; 5.5Mbps@11Mbps |
| Interface |
mini USB |
| Operating Temperature |
0~60J ambient temperature |
| Storage Temperature |
-20~70J ambient temperature |
| Power Consumption |
290mA at 5VDC (Max.) |
| Operating & Storage Humidity |
10%~90%(non-condensing) |
| Operating System Support |
Windows® 98SE, ME, 2000, XP, SP2, Vista, MAC, Linux |
