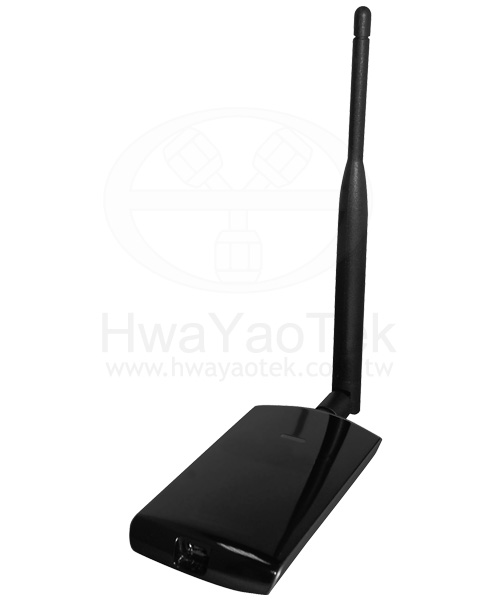

High Power 1000mW USB Adapter

The power of our USB adatper indicated is the real power value, it's truly different from the other suppliers they offered.
High Power 1000~1300mw

Specification
Model usb-2450-30
 Standard IEEE 802.11b/g
 Antenna Gain 5dbi
 Frequency Range 2.400GHz~2.484GHz
Number of operation channel 2.412~2.462GHz(Canada, FCC) / 11Channels
2.412~2.484GHz(Japan, TELEC) / 14 Channels
2.412~2.472GHz(Euro, ETSI) / 13 Channels
 Security 64/128bit WEP
WPA(TKIP with IEEE 802.1x)
WPA2(AES with IEEE 802.1x)
Access Protocol CSMA/CA
RF Output Power(Typical) 802.11b: up to 30 ± 1 dBm
802.11g: up to 24 ± 1 dBm
Data Rate 802.11g: 54, 48, 36, 24, 18, 12, 9 & 6Mbps
802.11b: 11, 5.5, 2 and 1 Mbps with auto-rate fall back
Sensitivity: -73dBm @ 54Mbps
-85dBm @ 11Mbps
Interface mini USB
 Operating Temperature 0~60J ambient temperature
Storage Temperature -20~70J ambient temperature
Operation Voltage 5V
 Storage Humidity 10H ~ 90H (Non-condensing)
Driver support Windows® 2000, XP 32/64, Vista 32/64
Verification of compliance RoHSBCE
Size L99 x W60 x H16 mm
Weight 167.5g
